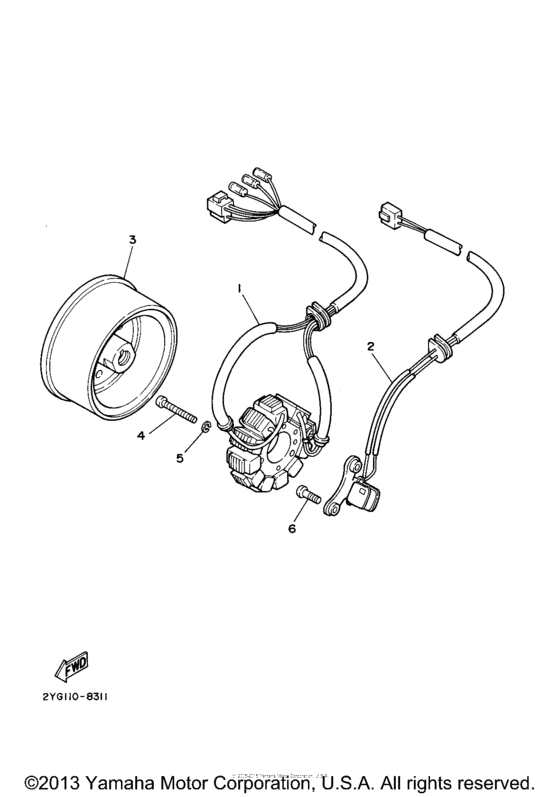

Generator Diagram Yamaha XT225 Serow
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-81410-01-00 Stator Assembly |
4BE-81410-01-00 |
from US $485.58 |
||
|
2
|
2
3RW-85580-01-00
Coil, Pulser
|
3RW-85580-01-00 |
— | ||
|
3
|
3
2YG-85550-01-00
Rotor Assy
|
2YG-85550-01-00 |
— | ||
| replacement | |||||
|
3
|
3
2YG-85550-02-00
Rotor Assy
|
2YG-85550-02-00 |
— | ||
|
4
|
4
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
5
|
5
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
6
|
6
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
