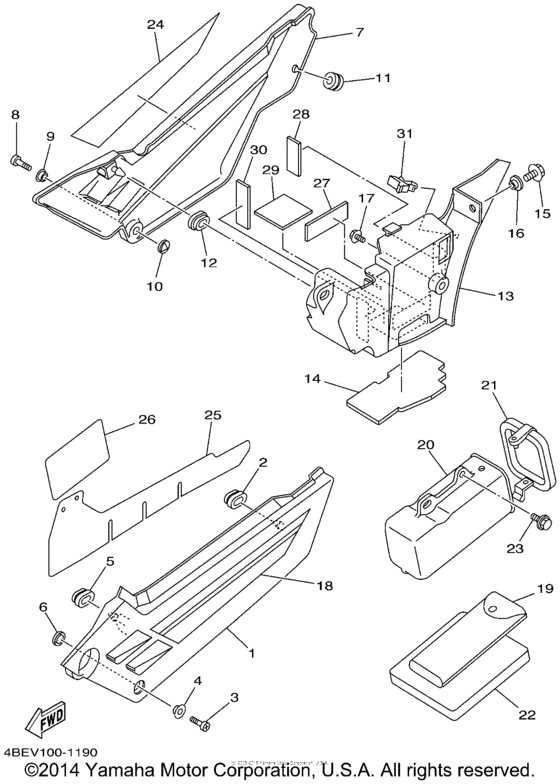

Side cover Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3RW-21711-10-00
Cover, Side 1
|
3RW-21711-10-00 |
— | ||
|
2
|
2
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
2
|
2
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
3
|
3
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
4
|
4
903-87064-J1-00
Collar
|
903-87064-J1-00 |
— | ||
| replacement | |||||
|
4
|
4
903-87061-07-00 Collar |
903-87061-07-00 |
from US $4.99 |
||
|
5
|
5
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
5
|
5
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
6
|
6
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
7
|
7
3RW-21721-10-00
Cover, Side 2
|
3RW-21721-10-00 |
— | ||
|
8
|
8
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
9
|
9
903-87064-J1-00
Collar
|
903-87064-J1-00 |
— | ||
| replacement | |||||
|
9
|
9
903-87061-07-00 Collar |
903-87061-07-00 |
from US $4.99 |
||
|
10
|
10
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
11
|
11
90480-11224-00 Grommet |
90480-11224-00 |
from US $1.81 |
||
|
12
|
12
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
12
|
12
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
13
|
13
3RW-2177A-02-00 Box |
3RW-2177A-02-00 |
from US $139.54 |
||
|
14
|
14
5MP-2173M-00-00 Seal 3 |
5MP-2173M-00-00 |
from US $3.22 |
||
|
15
|
15
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
15
|
15
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
16
|
16
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
|
17
|
17
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
| replacement | |||||
|
17
|
17
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
18
|
18
4BE-2173E-80-00
Graphic 1
|
4BE-2173E-80-00 |
— | ||
|
19
|
19
3RW-28100-01-00 Tool Kit |
3RW-28100-01-00 |
US $99.63 |
||
|
20
|
20
55V-28173-01-00 Box, Tool |
55V-28173-01-00 |
from US $35.14 |
||
|
21
|
21
55V-28185-00-00 Lid |
55V-28185-00-00 |
from US $20.12 |
||
|
22
|
22
3RW-28267-00-00 Damper 5 |
3RW-28267-00-00 |
from US $16.31 |
||
|
23
|
23
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
24
|
24
4BE-2173F-80-00
Graphic 2
|
4BE-2173F-80-00 |
— | ||
|
25
|
25
3RW-2177F-00-00
Cover
|
3RW-2177F-00-00 |
— | ||
|
26
|
26
4BE-2179N-A0-00 Plate, Epa 2(California)2CALIFORNIA 5RK1 |
4BE-2179N-A0-00 |
US $31.79 |
||
|
26
|
26
4BE-2179V-A0-00
Plate, Epa 1(Non California)
1NON CALIFORNIA 4BEY |
4BE-2179V-A0-00 |
— | ||
|
27
|
27
4GY-2214F-00-00 Damper 1 |
4GY-2214F-00-00 |
from US $1.12 |
||
|
28
|
28
1JK-21639-00-00 Damper 2 |
1JK-21639-00-00 |
US $3.12 |
||
| replacement | |||||
|
28
|
28
4X4-24181-00-00 Damper, Locating 1 |
4X4-24181-00-00 |
from US $3.12 |
||
|
29
|
29
5MP-21747-00-00 Damper |
5MP-21747-00-00 |
from US $2.13 |
||
|
30
|
30
50M-21638-00-00 Damper 1 |
50M-21638-00-00 |
from US $2.29 |
||
| replacement | |||||
|
30
|
30
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.91 |
||
|
31
|
31
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
