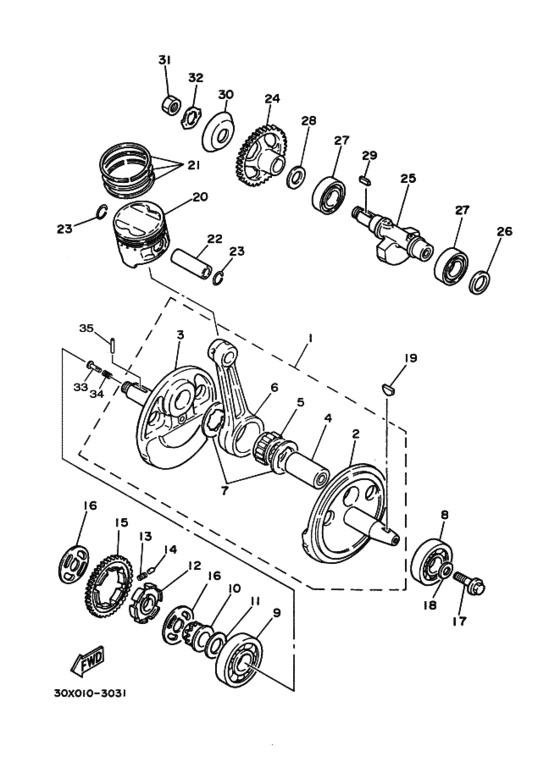

Crankshaft & Piston Diagram Yamaha XT250 XT250
- Year
- 1983
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 30X0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-11400-00-00
Crankshaft Assembly
|
30X-11400-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
30X-11412-00-00
Crank 1
．クランク １; |
30X-11412-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．クランク １; |
999-99999-99-00 |
— | ||
|
3
|
3
30X-11422-00-00
Crank 2
．クランク ２; |
30X-11422-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
．クランク ２; |
999-99999-99-00 |
— | ||
|
4
|
4
30X-11681-00-00 Pin, Crank 1．ピン，クランク １; |
30X-11681-00-00 |
from US $34.34 |
||
|
5
|
5
93310-633L9-00 Bearing．ベアリング; |
93310-633L9-00 |
from US $29.61 |
||
| replacement | |||||
|
5
|
5
93310-633T5-00 Bearing, Cylindrical(2Jn)．ベアリング; |
93310-633T5-00 |
from US $29.61 |
||
|
6
|
6
30X-11651-01-00
Rod, Connecting
．ロツド，コネクテイング; |
30X-11651-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
．ロツド，コネクテイング; |
999-99999-99-00 |
— | ||
|
7
|
7
90209-33253-00 Washer．ワツシヤ; |
90209-33253-00 |
from US $4.04 |
||
|
8
|
8
93306-30534-00 Bearing (11H) |
93306-30534-00 |
from US $60.51 |
||
| replacement | |||||
|
8
|
8
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $61.94 |
||
|
9
|
9
93306-30622-00 Bearingベアリング ; ６３０６ＳＨ４ スペシヤル |
93306-30622-00 |
from US $49.18 |
||
| replacement | |||||
|
9
|
9
933-06306-30-00 Bearing(3Kw)ベアリング ; ６３０６ＳＨ４ スペシヤル |
933-06306-30-00 |
from US $48.50 |
||
|
10
|
10
30X-11549-00-00 Sprocket, Cam Chainスプロケツト，カムチエーン; |
30X-11549-00-00 |
US $31 |
||
|
11
|
11
90209-23242-00
Washer
|
90209-23242-00 |
— | ||
|
12
|
12
30X-11496-00-00 Boss, Buffer |
30X-11496-00-00 |
from US $68.67 |
||
|
13
|
13
90501-21133-00 Spring, Compression |
90501-21133-00 |
from US $1.84 |
||
|
14
|
14
93605-10090-00 Pin, Dowel |
93605-10090-00 |
from US $1.94 |
||
|
15
|
15
30X-11531-00-00 Gear, Balance Wt (43T)ギア，バランス ; ４３Ｔ |
30X-11531-00-00 |
US $124.69 |
||
| replacement | |||||
|
15
|
15
51Y-11531-00-00 Gear, Balance Wtギア，バランス ; ４３Ｔ |
51Y-11531-00-00 |
US $141.82 |
||
|
16
|
16
30X-11565-00-00 Washer, Bearing Coverワツシヤ，ベアリングカバー; |
30X-11565-00-00 |
from US $9.21 |
||
|
17
|
17
901-05102-90-00
Bolt, Flange
ボルト，ワツシヤベースドヘツド; |
901-05102-90-00 |
— | ||
| replacement | |||||
|
17
|
17
958-14100-40-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-14100-40-00 |
from US $2.91 |
||
|
18
|
18
90201-10508-00 Washer, Plateワツシヤ，プレート; |
90201-10508-00 |
from US $3.83 |
||
| replacement | |||||
|
18
|
18
90201-102J5-00 Washer, Plateワツシヤ，プレート; |
90201-102J5-00 |
from US $3.83 |
||
|
19
|
19
902-80050-13-00
Key, Woodruff
キー，ウツドラフ; |
902-80050-13-00 |
— | ||
| replacement | |||||
|
19
|
19
90280-05001-00 Key, Woodruffキー，ウツドラフ; |
90280-05001-00 |
from US $9.15 |
||
|
20
|
20
30X-11631-01-A0
Piston (Std)
ＳＴＤ |
30X-11631-01-A0 |
— | ||
|
21
|
21
30X-11610-00-00 Piston Ringset Stdset (Std)ピストンリングセツト ; ＳＴＤ |
30X-11610-00-00 |
from US $67.39 |
||
|
22
|
22
30X-11633-01-00 Pin, Piston |
30X-11633-01-00 |
from US $22.21 |
||
| replacement | |||||
|
22
|
22
30X-11633-03-00 Pin, Piston |
30X-11633-03-00 |
from US $19.20 |
||
|
23
|
23
934-50190-52-00 Circlipサークリツプ; |
934-50190-52-00 |
from US $1.81 |
||
|
24
|
24
30X-11536-00-00
Gear, Drive (43T)
ギア，ドライブ ; ４３Ｔ |
30X-11536-00-00 |
— | ||
| replacement | |||||
|
24
|
24
51Y-11536-00-00
Gear, Drive
ギア，ドライブ ; ４３Ｔ |
51Y-11536-00-00 |
— | ||
|
25
|
25
30X-11454-00-00
Weight 1
|
30X-11454-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
93101-25106-00 Oil Sealオイルシール; |
93101-25106-00 |
from US $5.74 |
||
|
27
|
27
933-06205-57-00
Bearing
|
933-06205-57-00 |
— | ||
| replacement | |||||
|
27
|
27
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
28
|
28
90201-207G6-00 Washer, Plateワツシヤ，プレート; |
90201-207G6-00 |
from US $9.92 |
||
|
29
|
29
90282-05034-00 Key, Straightキー，ストレイト; |
90282-05034-00 |
from US $1.70 |
||
|
30
|
30
34K-11145-00-00 Plate, Breather 2プレート，ブリーザ ２; |
34K-11145-00-00 |
US $8.49 |
||
|
31
|
31
90170-16326-00 Nut |
90170-16326-00 |
from US $4.04 |
||
|
32
|
32
90215-16221-00 Washer, Lock |
90215-16221-00 |
from US $3.40 |
||
|
33
|
33
90240-07105-00 Pin, Clevis |
90240-07105-00 |
from US $7.93 |
||
|
34
|
34
90501-07629-00 Spring, Compression |
90501-07629-00 |
from US $1.70 |
||
|
35
|
35
93602-13177-00 Pin, Dowel (5H0)ピン，ダウエル; |
93602-13177-00 |
from US $1.81 |
||
