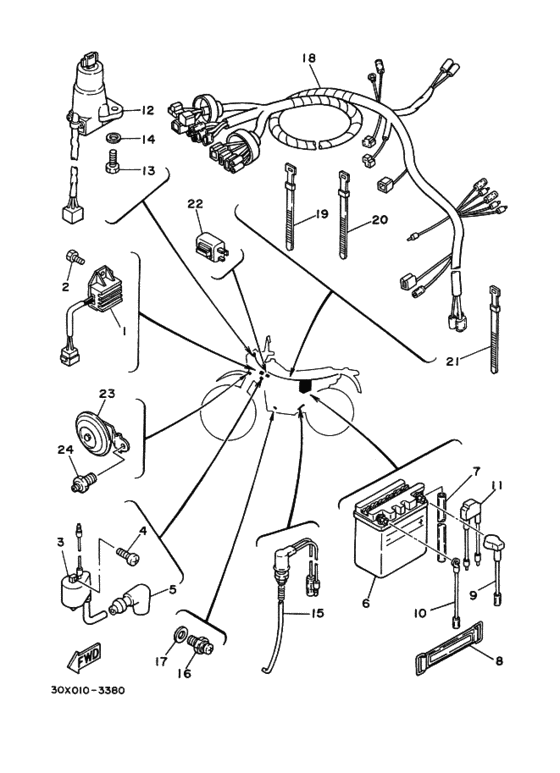

Electrical 1 Diagram Yamaha XT250 XT250
- Year
- 1983
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 30X0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-81960-60-00 Rectifier & Regulator Assemblyレクチフアイヤアンドレギユレータアセンブリ; |
33G-81960-60-00 |
from US $183.58 |
||
|
2
|
2
97302-06012-00 Bolt |
97302-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
2
|
2
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
2
|
2
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
3
|
3
30X-82310-40-00
Ignition Coil Assy
イグニシヨンコイルアセンブリ; |
30X-82310-40-00 |
— | ||
| replacement | |||||
|
3
|
3
3SR-82310-10-00
Ignition Coil Assy
イグニシヨンコイルアセンブリ; |
3SR-82310-10-00 |
— | ||
|
4
|
4
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
4
|
4
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
5
|
5
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
5
|
5
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
6
|
6
90793-26255-00
Battery Assy
バツテリアセンブリ; |
90793-26255-00 |
— | ||
|
7
|
7
904-45083-36-00
Hose (L1500)
ホース; |
904-45083-36-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-084J0-00 Pipeホース; |
90445-084J0-00 |
from US $8.76 |
||
|
8
|
8
7H3-82131-00-00 Band, Batteryバンド，バツテリ; |
7H3-82131-00-00 |
from US $5.06 |
||
|
9
|
9
1M1-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
1M1-82115-00-00 |
from US $26.21 |
||
|
10
|
10
558-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
558-82116-00-00 |
US $9.41 |
||
|
11
|
11
30X-82180-00-00
Circuit Breaker (3J0-82181-00)
サーキツトブレーカーアセンブリ; |
30X-82180-00-00 |
— | ||
| replacements | |||||
|
11
|
11
3J0-82180-00-00
Circuit Breaker (3J0-82181-00)
サーキツトブレーカーアセンブリ; |
3J0-82180-00-00 |
— | ||
|
11
|
11
999-99028-51-00 Fuse Holder Assy (30X)サーキツトブレーカーアセンブリ; |
999-99028-51-00 |
US $22.52 |
||
|
12
|
12
5R2-82026-00-00
Key Set
キーセツト; ＡＰ＊１ |
5R2-82026-00-00 |
— | ||
|
12
|
12
5R2-82501-00-00 Main Switch Steering Lock |
5R2-82501-00-00 |
from US $102.12 |
||
| replacement | |||||
|
12
|
12
5R2-82501-01-00
Main Swch Strglck
|
5R2-82501-01-00 |
— | ||
|
13
|
13
97302-06020-00 Bolt |
97302-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
14
|
14
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
30X-82530-00-00 301 Stop Switch Assy |
30X-82530-00-00 |
US $29.52 |
||
| replacement | |||||
|
15
|
15
30X-82530-02-00 Stop Switch Assembly |
30X-82530-02-00 |
US $29.52 |
||
|
16
|
16
2H7-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
16
|
16
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
16
|
16
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $26.22 |
||
|
17
|
17
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
18
|
18
30X-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
30X-82590-00-00 |
— | ||
|
19
|
19
437-83936-10-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
437-83936-11-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
20
|
20
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
256-83936-00-00 Band, Switch Cordバンド，スイツチコード; |
256-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
25G-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-01-00 |
from US $1.56 |
||
|
22
|
22
30X-83350-20-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
30X-83350-20-00 |
— | ||
|
23
|
23
30X-83371-20-00
Horn
ホーン; |
30X-83371-20-00 |
— | ||
|
24
|
24
95806-06010-00 Bolt Hexagon |
95806-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
24
|
24
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
24
|
24
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
