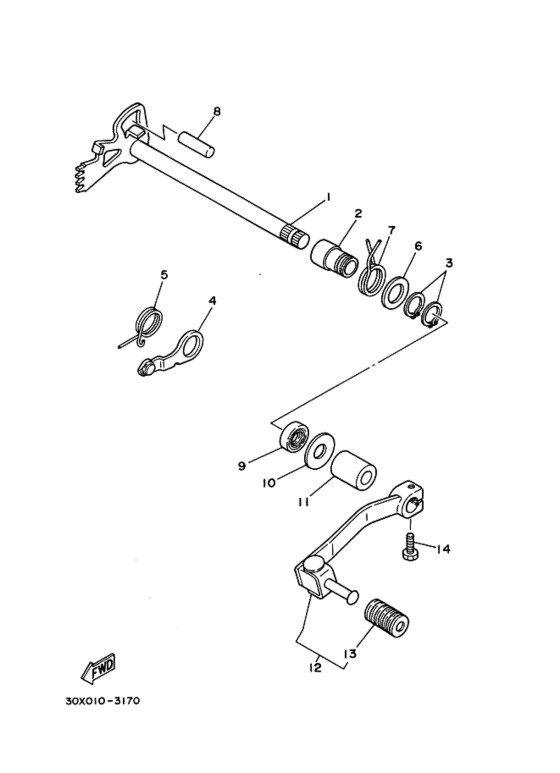

Shift shaft Diagram Yamaha XT250 XT250
- Year
- 1983
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 30X0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-18101-00-00 Shift Shaft Assy |
30X-18101-00-00 |
US $39.71 |
||
| replacement | |||||
|
1
|
1
30X-18101-01-00 Shift Shaft Assembly |
30X-18101-01-00 |
US $39.71 |
||
|
2
|
2
90387-12787-00 Collarカラー; |
90387-12787-00 |
from US $6.94 |
||
|
3
|
3
93410-17008-00 Circlipサークリツプ; |
93410-17008-00 |
from US $1.56 |
||
| replacements | |||||
|
3
|
3
93410-17X00-00 Circlipサークリツプ; |
93410-17X00-00 |
US $1.50 |
||
|
3
|
3
99009-17400-00 Circlipサークリツプ; |
99009-17400-00 |
from US $1.56 |
||
|
4
|
4
3Y1-18140-00-00 Stopper Lever Assyストツパレバーアセンブリ; |
3Y1-18140-00-00 |
from US $13.74 |
||
|
5
|
5
90508-26434-00 Spring, Torsionスプリング，トーシヨン; |
90508-26434-00 |
from US $2.16 |
||
|
6
|
6
90201-17255-00 Washer, Plateワツシヤ，プレート; |
90201-17255-00 |
from US $1.77 |
||
| replacement | |||||
|
6
|
6
90201-177G4-00 Washer, Plateワツシヤ，プレート; |
90201-177G4-00 |
from US $1.77 |
||
|
7
|
7
90508-32374-00 Spring, Torsionスプリング，トーシヨン; |
90508-32374-00 |
from US $6.09 |
||
|
8
|
8
93608-30152-00
Pin, Dowel
|
93608-30152-00 |
— | ||
|
9
|
9
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)オイルシール; |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
9
|
9
931-02123-21-00 Oil Sealオイルシール; |
931-02123-21-00 |
from US $4.86 |
||
|
10
|
10
90201-12588-00 Washer, Plateワツシヤ，プレート; |
90201-12588-00 |
from US $1.70 |
||
|
11
|
11
90560-12191-00 Spacerスペーサ; |
90560-12191-00 |
from US $3.54 |
||
|
12
|
12
30X-18110-01-00
Shift Pedal Assembly
|
30X-18110-01-00 |
— | ||
|
13
|
13
1W6-18113-00-00 Cover, Shift Pedal．カバー，シフトペダル; |
1W6-18113-00-00 |
from US $7.21 |
||
|
14
|
14
97326-06020-00 Bolt |
97326-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
