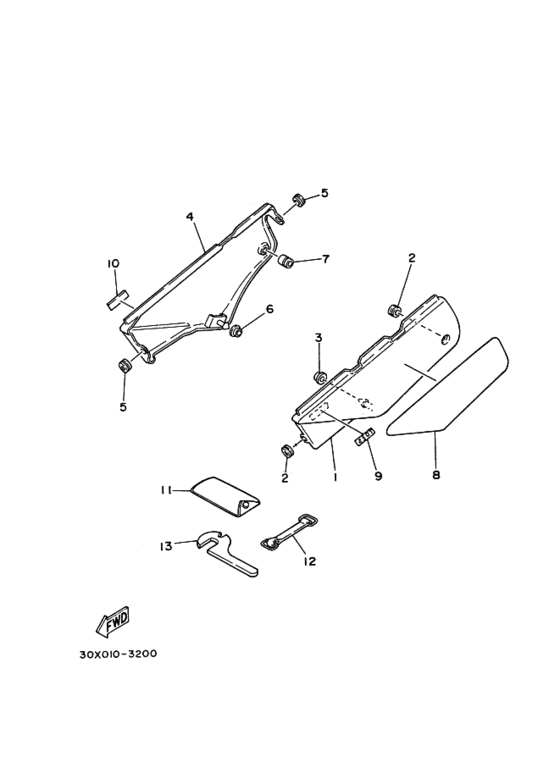

Side cover Diagram Yamaha XT250 XT250
- Year
- 1983
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 30X0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-21711-20-98
Cover, Side 1
カバー，サイド １; ＵＲ ツヤケシブラツク ／スカイブルー |
30X-21711-20-98 |
— | ||
|
2
|
2
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
3
|
3
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
3
|
3
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
4
|
4
30X-21721-20-2X
Cover, Side 2
カバー，サイド ２; ＵＲ ツヤケシブラツク ／スカイブルー |
30X-21721-20-2X |
— | ||
|
5
|
5
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
6
|
6
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
6
|
6
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
7
|
7
10V-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
10V-24181-00-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
22W-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
22W-24181-00-00 |
from US $3.89 |
||
|
8
|
8
30X-21784-20-00
Emblem 4
ＵＲ ＦＯＲ ＳＹＢ |
30X-21784-20-00 |
— | ||
|
9
|
9
30X-21785-20-00
Emblem 5
ＵＲ ＦＯＲ ＳＹＢ |
30X-21785-20-00 |
— | ||
|
10
|
10
30X-21785-20-00
Emblem 5
ＵＲ ＦＯＲ ＳＹＢ |
30X-21785-20-00 |
— | ||
|
11
|
11
30X-28100-00-00 Tool Kitツールキツト; |
30X-28100-00-00 |
US $141.26 |
||
| replacement | |||||
|
11
|
11
1LN-W2810-01-00
Tool Kit (48Y-28100-00-00)
ツールキツト; |
1LN-W2810-01-00 |
— | ||
|
12
|
12
116-82131-00-00 Band, Battery |
116-82131-00-00 |
from US $10.48 |
||
|
13
|
13
1W1-28135-10-00 Spanner, Special |
1W1-28135-10-00 |
US $45.14 |
||
| replacement | |||||
|
13
|
13
10V-28135-00-00 Spanner, Special |
10V-28135-00-00 |
US $45.14 |
||
