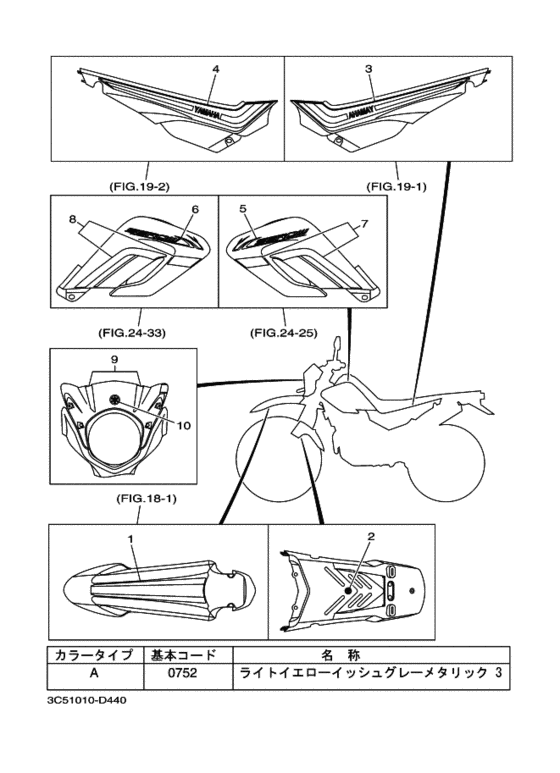

ｸﾞﾗﾌｨｯｸ & ｴﾝﾌﾞﾚﾑ 2 Diagram Yamaha XT250 Serow
- Year
- 2005
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 3C52
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Note
- ; 20th Anniversary Special
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-21569-20-00
Graphic 1
．グラフイツク １; |
3C5-21569-20-00 |
— | ||
|
2
|
2
3C5-2411B-00-00 Emblem |
3C5-2411B-00-00 |
from US $6.51 |
||
|
3
|
3
3C5-2173E-20-00 Graphic 1．グラフイツク １; |
3C5-2173E-20-00 |
US $51.21 |
||
|
4
|
4
3C5-2173F-20-00
Graphic 2
．グラフイツク ２; |
3C5-2173F-20-00 |
— | ||
|
5
|
5
3C5-24161-20-00 Emblem 1．エンブレム １; |
3C5-24161-20-00 |
US $18.80 |
||
|
6
|
6
3C5-24162-20-00
Emblem 2
．エンブレム ２; |
3C5-24162-20-00 |
— | ||
|
7
|
7
3C5-2137C-20-00
Graphic, Scoop Air Set 1
．グラフイツク， スクープ エア １; |
3C5-2137C-20-00 |
— | ||
|
8
|
8
3C5-2137D-20-00
Graphic, Scoop Air Set 2
．グラフイツク， スクープ エア ２; |
3C5-2137D-20-00 |
— | ||
|
9
|
9
3C5-28390-20-00
Graphic Set, Cowling
|
3C5-28390-20-00 |
— | ||
|
10
|
10
3C5-2411B-00-00 Emblem |
3C5-2411B-00-00 |
from US $6.51 |
