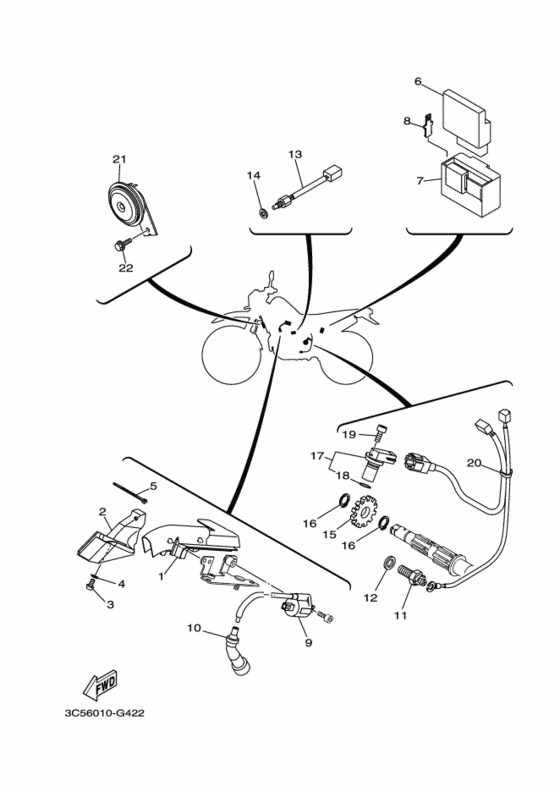

Electrical 2 Diagram Yamaha XT250 Serow
- Year
- 2010
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3C5M
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XT-2117N-00-00 Cover 3カバー ３; |
5XT-2117N-00-00 |
from US $27.63 |
||
|
2
|
2
5XT-2117R-00-00 Cover 4カバー ４; |
5XT-2117R-00-00 |
from US $8.93 |
||
|
3
|
3
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.66 |
||
|
4
|
4
902-01060-58-00
Washer Plate 101241870000
ワツシヤ，プレート; |
902-01060-58-00 |
— | ||
| replacements | |||||
|
4
|
4
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
4
|
4
902-01065-F3-00
Washer, Plate
ワツシヤ，プレート; |
902-01065-F3-00 |
— | ||
|
5
|
5
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
6
|
6
3C5-85901-00-00 Engine Control Unit Sub-Assyエンジンコントロールユニツトサブアセンブリ; |
3C5-85901-00-00 |
US $394.20 |
||
|
7
|
7
5XT-85546-10-00 Band |
5XT-85546-10-00 |
from US $18.58 |
||
|
8
|
8
5XT-82171-00-00 Stay, Fuse Boxステー，フユーズボツクス; |
5XT-82171-00-00 |
from US $8.36 |
||
|
9
|
9
1S4-82310-00-00
Ignition Coil Assy
|
1S4-82310-00-00 |
— | ||
| replacements | |||||
|
9
|
9
1S4-82310-01-00 Ignition Coil Assy |
1S4-82310-01-00 |
from US $59.92 |
||
|
9
|
9
1S4-82310-02-00 IGNITION COIL ASSY |
1S4-82310-02-00 |
from US $49.63 |
||
|
9
|
9
1S4-82310-03-00 Ignition Coil Assy |
1S4-82310-03-00 |
US $57.82 |
||
|
9
|
9
1S4-82310-03-00 Ignition Coil Assy |
1S4-82310-03-00 |
US $57.82 |
||
|
10
|
10
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
| replacement | |||||
|
10
|
10
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
11
|
11
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $24.58 |
||
|
12
|
12
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
13
|
13
5XT-83591-00-00 Thermo Unitサーモユニツト; |
5XT-83591-00-00 |
from US $64.80 |
||
|
14
|
14
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.70 |
||
|
15
|
15
3C5-8354W-00-00 Rotorローター; |
3C5-8354W-00-00 |
from US $68.45 |
||
|
16
|
16
99009-17400-00 Circlipサークリツプ; |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
93410-17X00-00 Circlipサークリツプ; |
93410-17X00-00 |
US $1.50 |
||
|
17
|
17
1S4-83755-00-00 Sensor, Speedセンサ，スピード; |
1S4-83755-00-00 |
from US $99.20 |
||
| replacement | |||||
|
17
|
17
1S4-83755-01-00 Sensor, Speedセンサ，スピード; |
1S4-83755-01-00 |
from US $99.20 |
||
|
18
|
18
1S4-81168-00-00 O-Ring．Ｏ−リング; |
1S4-81168-00-00 |
from US $6.38 |
||
|
19
|
19
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
20
|
20
3C5-82309-00-00 Wire, Sub Leadワイヤ，サブリード; |
3C5-82309-00-00 |
US $36.75 |
||
|
21
|
21
3C5-83371-00-00 Hornホーン; |
3C5-83371-00-00 |
from US $43.52 |
||
|
22
|
22
958-27060-10-00
Bolt, Flange(Jn5)
ボルト，フランジ; |
958-27060-10-00 |
— | ||
| replacement | |||||
|
22
|
22
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
