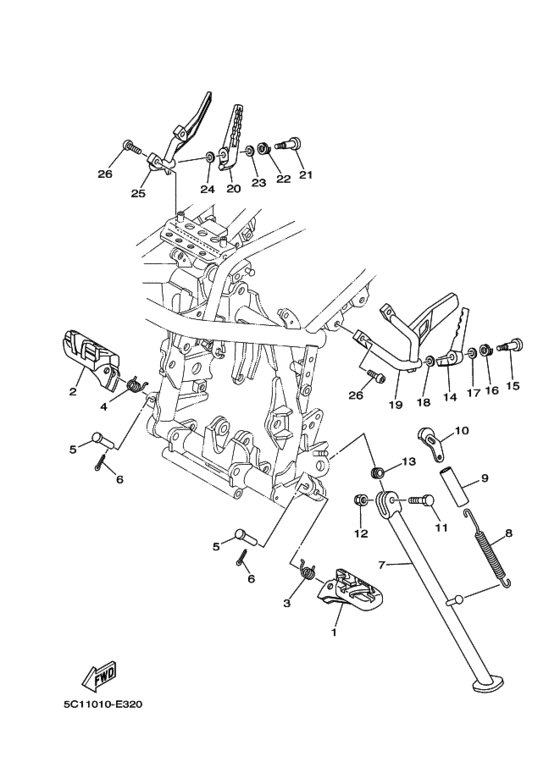

Stand & Footrest Diagram Yamaha XT250 Serow
- Year
- 2006
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5C11
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VK-27411-00-00 Footrest 1フートレスト １; |
5VK-27411-00-00 |
US $26.49 |
||
|
2
|
2
5VK-27421-00-00 Footrest 2フートレスト ２; |
5VK-27421-00-00 |
US $26.49 |
||
|
3
|
3
5C1-27116-00-00 Spring, Main Stand |
5C1-27116-00-00 |
US $11.19 |
||
|
4
|
4
5C1-27316-00-00 Spring, Side Stand |
5C1-27316-00-00 |
US $11.19 |
||
|
5
|
5
90240-10101-00 Pin, Clevis |
90240-10101-00 |
from US $7.23 |
||
|
6
|
6
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
6
|
6
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
7
|
7
5XT-27311-00-00 Stand, Side |
5XT-27311-00-00 |
US $43.11 |
||
|
8
|
8
90507-29009-00 Spring (460) |
90507-29009-00 |
from US $11.05 |
||
|
9
|
9
90445-197J2-00 Hose (L60)ホース ; Ｌ６０ |
90445-197J2-00 |
from US $3.89 |
||
|
10
|
10
5XT-27315-00-00 Link, Side Stand |
5XT-27315-00-00 |
US $3.68 |
||
| replacement | |||||
|
10
|
10
5XT-27315-01-00 Link, Side Stand |
5XT-27315-01-00 |
from US $3.68 |
||
|
11
|
11
90101-10013-00 Bolt |
90101-10013-00 |
from US $4.11 |
||
|
12
|
12
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
13
|
13
90387-10003-00 Collarカラー; |
90387-10003-00 |
from US $9.35 |
||
|
14
|
14
3XP-27431-00-00 Footrest, Rear 1フートレスト，リヤ １; |
3XP-27431-00-00 |
US $28.76 |
||
| replacement | |||||
|
14
|
14
3XP-27431-02-00 Footrest, Rear 1フートレスト，リヤ １; |
3XP-27431-02-00 |
from US $31.63 |
||
|
15
|
15
90109-085F5-00 Bolt |
90109-085F5-00 |
from US $5.97 |
||
|
16
|
16
90504-18005-00 Spring, Compression |
90504-18005-00 |
from US $3.05 |
||
| replacement | |||||
|
16
|
16
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
17
|
17
92907-10600-00 Washer, Plateワツシヤ，プレート; |
92907-10600-00 |
from US $1.18 |
||
|
18
|
18
90201-083P5-00 Washer, Plateワツシヤ，プレート; |
90201-083P5-00 |
from US $1.81 |
||
|
19
|
19
3C5-27432-00-00 Bracket 1 |
3C5-27432-00-00 |
from US $51.95 |
||
|
20
|
20
3XP-27441-00-00 Footrest, Rear 2フートレスト，リヤ ２; |
3XP-27441-00-00 |
US $28.76 |
||
| replacement | |||||
|
20
|
20
3XP-27441-02-00 Footrest, Rear 2フートレスト，リヤ ２; |
3XP-27441-02-00 |
from US $31.63 |
||
|
21
|
21
90109-085F5-00 Bolt |
90109-085F5-00 |
from US $5.97 |
||
|
22
|
22
90504-18005-00 Spring, Compression |
90504-18005-00 |
from US $3.05 |
||
| replacement | |||||
|
22
|
22
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
23
|
23
92907-10600-00 Washer, Plateワツシヤ，プレート; |
92907-10600-00 |
from US $1.18 |
||
|
24
|
24
90201-083P5-00 Washer, Plateワツシヤ，プレート; |
90201-083P5-00 |
from US $1.81 |
||
|
25
|
25
3C5-27442-00-00 Bracket 2 |
3C5-27442-00-00 |
from US $51.95 |
||
|
26
|
26
92014-08020-00 Bolt, Button Headボルト，ボタンヘツド; |
92014-08020-00 |
from US $1.66 |
||
