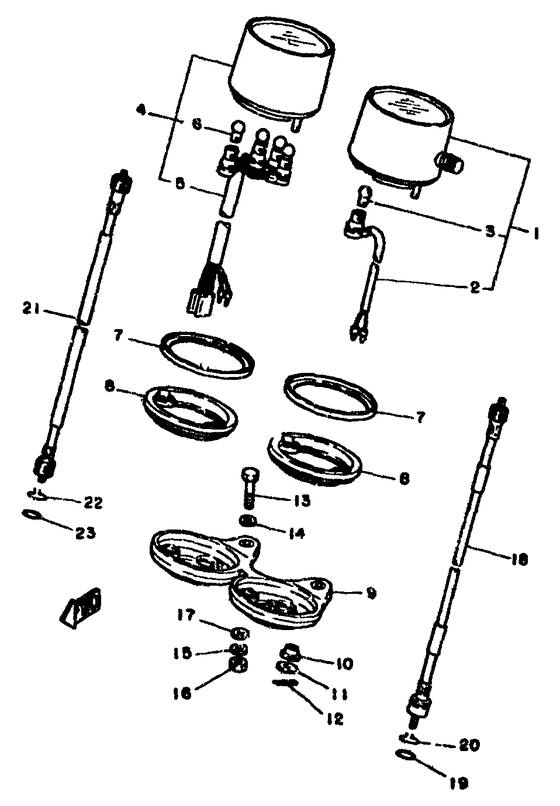

Speedometer. tachometer Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y3-83570-G0-00
Speedometer Assembly
|
3Y3-83570-G0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1V1-83536-00-00
Socket, Meter
|
1V1-83536-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5E2-83509-00-00
Socket Cord Assembly (15A-835
|
5E2-83509-00-00 |
— | ||
|
3
|
3
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
3
|
3
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
|
4
|
4
3Y3-83540-00-00
Tachometer Assy
|
3Y3-83540-00-00 |
— | ||
| replacement | |||||
|
4
|
4
2X1-83540-F0-00
Tachometer Assembly (2N4-83540-
|
2X1-83540-F0-00 |
— | ||
|
5
|
5
3Y3-83520-00-00
Socket Cord Assy
|
3Y3-83520-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
6
|
6
122-83516-10-XX
Bulb
|
122-83516-10-XX |
— | ||
|
7
|
7
2A6-83506-00-00
Ring, Meter Cover
|
2A6-83506-00-00 |
— | ||
|
8
|
8
2A6-83513-00-00
Damper
|
2A6-83513-00-00 |
— | ||
|
9
|
9
3J0-83519-00-00
Bracket, Meter
|
3J0-83519-00-00 |
— | ||
|
10
|
10
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
10
|
10
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
11
|
11
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
12
|
12
90468-12007-00 Clip |
90468-12007-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
97301-06045-00 Bolt |
97301-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
13
|
13
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
18
|
18
3Y1-83550-00-00 Speedometer Cable Assy |
3Y1-83550-00-00 |
from US $33.52 |
||
| replacement | |||||
|
18
|
18
3Y1-83550-01-00 Speedometer Cable (3Y1-83550-00 |
3Y1-83550-01-00 |
from US $40.90 |
||
|
19
|
19
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
19
|
19
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
20
|
20
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
21
|
21
2J2-83560-00-00 Tachometer Cable Assy |
2J2-83560-00-00 |
from US $17.96 |
||
| replacement | |||||
|
21
|
21
2J2-83560-10-00 Tachometer Cable Assy |
2J2-83560-10-00 |
from US $21.60 |
||
|
22
|
22
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
23
|
23
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
23
|
23
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
