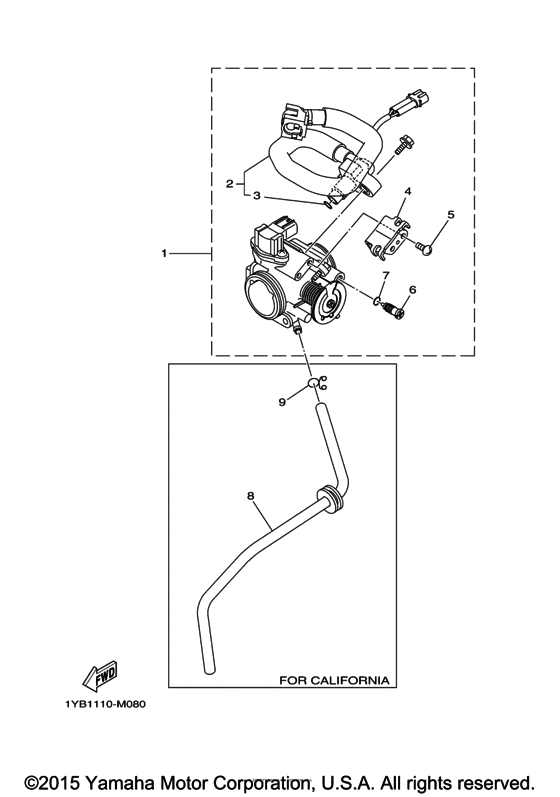

Intake 2 Diagram Yamaha XT250 XT250
- Year
- 2016
- Colour
- Pastel Mineral Blue
- Model code
- 1YBH
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XT-13750-12-00 Throttle Body AssyFOR U49 |
5XT-13750-12-00 |
from US $658.68 |
||
| replacement | |||||
|
1
|
1
5XT-13750-13-00 Throttle Body AssyFOR U49 |
5XT-13750-13-00 |
US $978.78 |
||
|
1
|
1
1YB-13750-01-00 Throttle Body AssyFOR CAL |
1YB-13750-01-00 |
US $757.84 |
||
|
2
|
2
5XT-13930-10-00
Pipe Inlet Assy
|
5XT-13930-10-00 |
— | ||
| replacement | |||||
|
2
|
2
5XT-13930-11-00 Pipe Inlet Assy |
5XT-13930-11-00 |
from US $298 |
||
|
3
|
3
5CA-14147-00-00 O-Ring |
5CA-14147-00-00 |
from US $3.12 |
||
|
4
|
4
5XT-14571-00-00 Bracket, Throttle |
5XT-14571-00-00 |
from US $21.96 |
||
|
5
|
5
985-07050-10-00
Screw, Pan Head
FOR U49 |
985-07050-10-00 |
— | ||
| replacement | |||||
|
5
|
5
985-17050-10-00 Screw, Pan HeadFOR U49 |
985-17050-10-00 |
from US $1.36 |
||
|
5
|
5
98502-05010-00 Screw, Pan HeadFOR CAL |
98502-05010-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
985-17050-10-00 Screw, Pan HeadFOR CAL |
985-17050-10-00 |
from US $1.36 |
||
|
5
|
5
97885-05010-00 Screw, Pan HeadFOR CAL |
97885-05010-00 |
from US $1.01 |
||
|
6
|
6
1S4-14123-00-00 Screw, Air Adjusting |
1S4-14123-00-00 |
from US $7.93 |
||
|
7
|
7
1S4-14147-00-00 O-Ring |
1S4-14147-00-00 |
from US $1.84 |
||
|
8
|
8
1YB-24323-00-00 Pipe 12FOR CAL |
1YB-24323-00-00 |
US $51.55 |
||
|
9
|
9
904-67090-A2-00 ClipFOR CAL |
904-67090-A2-00 |
from US $1.66 |
||
