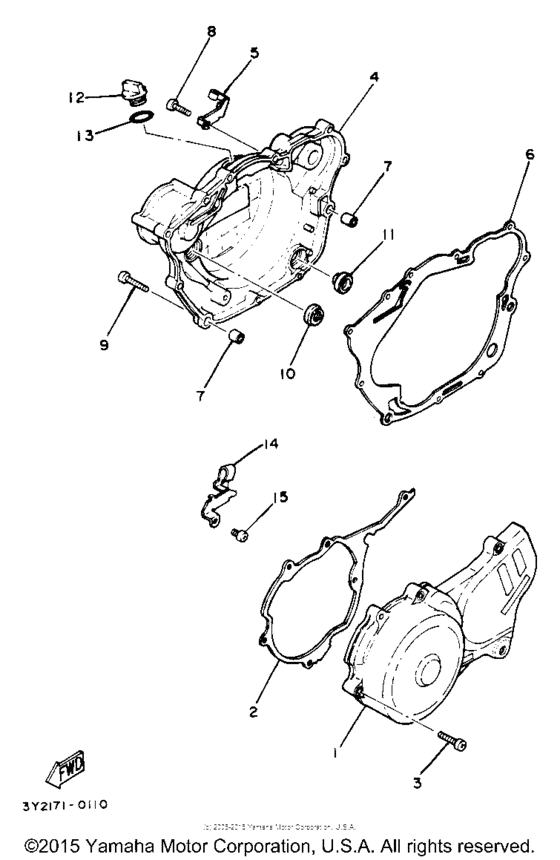

Crankcase cover Diagram Yamaha XT250 XT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-15411-01-00 Cover, Crankcase L |
3Y1-15411-01-00 |
US $187.85 |
||
|
2
|
2
3Y1-15451-01-00
Gasket, Crcs Cover
|
3Y1-15451-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3Y1-15451-10-00 Gasket, Crankcase Cover 1 |
3Y1-15451-10-00 |
from US $15.16 |
||
|
3
|
3
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
3
|
3
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
4
|
4
3Y1-15421-01-00
Cover, Crankcase R
|
3Y1-15421-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
3Y1-15378-01-00
Holder
|
3Y1-15378-01-00 |
— | ||
|
6
|
6
3Y1-15461-00-00
Gasket, Crcs Cov 2
|
3Y1-15461-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3Y1-15461-10-00 Gasket, Crankcase Cover 2 |
3Y1-15461-10-00 |
from US $22.95 |
||
|
7
|
7
995-10220-16-00
New Genuine Part
IN PRICE BOOK |
995-10220-16-00 |
— | ||
|
8
|
8
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
10
|
10
93101-14092-00 Oil Seal (S7-14-27-6-Hs) |
93101-14092-00 |
from US $6.94 |
||
|
11
|
11
3Y1-15361-00-00 Gauge, Level |
3Y1-15361-00-00 |
from US $9.10 |
||
|
12
|
12
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
12
|
12
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
13
|
13
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
14
|
14
90462-08062-00
Clamp
|
90462-08062-00 |
— | ||
|
15
|
15
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
