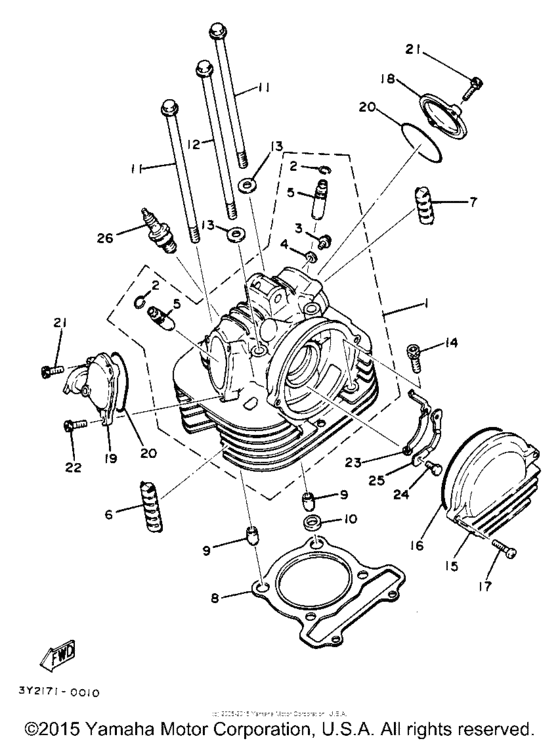

Cylinder head Diagram Yamaha XT250 XT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-11110-00-00
Cylinder Head Assembly
|
3Y1-11110-00-00 |
— | ||
|
2
|
2
93440-12052-00 Circlip |
93440-12052-00 |
from US $1.94 |
||
|
3
|
3
90153-06045-00 Screw, Tapping |
90153-06045-00 |
from US $1.70 |
||
| replacements | |||||
|
3
|
3
90163-06002-00 Screw, Tapping |
90163-06002-00 |
from US $4.25 |
||
|
3
|
3
901-53060-29-00
Screw, Tapping
|
901-53060-29-00 |
— | ||
|
4
|
4
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
5
|
5
3Y1-11133-10-00 Guide, Valve 1 |
3Y1-11133-10-00 |
from US $42.55 |
||
| replacement | |||||
|
5
|
5
3Y1-11133-11-00 Guide, Valve 1 |
3Y1-11133-11-00 |
from US $31.66 |
||
|
6
|
6
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
7
|
7
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
8
|
8
3Y1-11181-09-00 Gasket, Cylinder Head 1 |
3Y1-11181-09-00 |
from US $53.68 |
||
|
9
|
9
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
10
|
10
904-30141-31-00 Gasket |
904-30141-31-00 |
from US $7.21 |
||
|
11
|
11
90105-10140-00 Bolt, Flange |
90105-10140-00 |
from US $9.50 |
||
| replacement | |||||
|
11
|
11
90105-10213-00 Bolt, Flange |
90105-10213-00 |
from US $12.06 |
||
|
12
|
12
90105-10139-00
Bolt, Washer Based
|
90105-10139-00 |
— | ||
|
13
|
13
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.66 |
||
|
14
|
14
91316-08050-00 Bolt, Hex. Socket Head |
91316-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
91317-08050-00 Bolt, Hex. Socket Head |
91317-08050-00 |
from US $1.56 |
||
|
15
|
15
3Y1-11185-00-00 Cover, Cylinder Head Side 3 |
3Y1-11185-00-00 |
US $46.46 |
||
|
16
|
16
93211-06635-00 O-Ring |
93211-06635-00 |
from US $7.42 |
||
|
17
|
17
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
18
|
18
3Y1-11186-00-00 Cover, Cylinder Head |
3Y1-11186-00-00 |
from US $24.17 |
||
| replacement | |||||
|
18
|
18
3Y1-11186-10-00 Cover, Cylinder Head Side 2 |
3Y1-11186-10-00 |
from US $19.83 |
||
|
19
|
19
3Y1-11187-00-00
Cover, Cylinder Head Side 3
|
3Y1-11187-00-00 |
— | ||
|
20
|
20
93210-57634-00 O-Ring |
93210-57634-00 |
from US $4.43 |
||
|
21
|
21
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
22
|
22
90109-06556-00
Bolt
|
90109-06556-00 |
— | ||
|
23
|
23
3Y1-1111F-00-00 Plate |
3Y1-1111F-00-00 |
from US $7.79 |
||
|
24
|
24
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
24
|
24
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
25
|
25
90215-06162-00 Washer, Lock |
90215-06162-00 |
from US $1.98 |
||
|
26
|
26
NGK-BP7ES-00-00 Bp7Es Ngk Splug 4P |
NGK-BP7ES-00-00 |
US $17.80 |
||
| replacements | |||||
|
26
|
26
BP7-ES000-00-00 "3/8"" X 15 DOCKLINE" |
BP7-ES000-00-00 |
US $17.80 |
||
|
26
|
26
BPR-7ES00-40-00 BPR7ES NGK - 4/PACK |
BPR-7ES00-40-00 |
US $22.04 |
||
