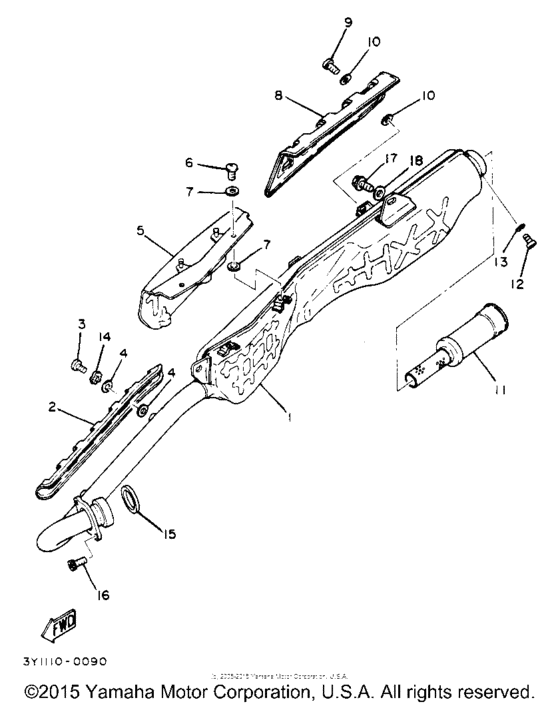

Exhaust Diagram Yamaha XT250 XT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-14711-00-00
Muffler L
|
3Y1-14711-00-00 |
— | ||
|
2
|
2
3Y1-14628-00-00
Protector, Exhaust Pipe
|
3Y1-14628-00-00 |
— | ||
|
3
|
3
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
4
|
4
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
5
|
5
3Y1-14718-00-00
Protector, Muff 1
|
3Y1-14718-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
7
|
7
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
8
|
8
3Y1-14728-00-00
Protecter, Muff 2
|
3Y1-14728-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
11
|
11
3Y1-14752-00-00
Pipe, Outlet
|
3Y1-14752-00-00 |
— | ||
|
12
|
12
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
15
|
15
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.70 |
||
|
16
|
16
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
17
|
17
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
17
|
17
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
17
|
17
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
18
|
18
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
