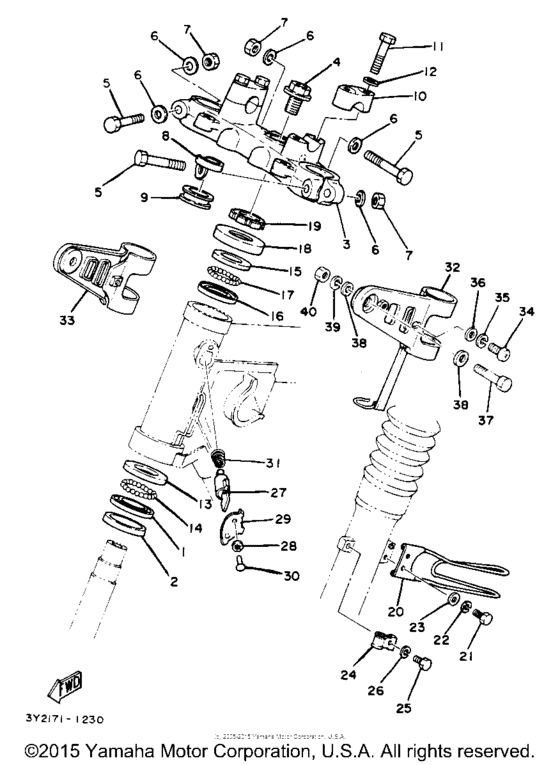

Steering Diagram Yamaha XT250 XT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
3Y1-23435-00-98
Crown, Handle
|
3Y1-23435-00-98 |
— | ||
|
4
|
4
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
5
|
5
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
5
|
5
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
6
|
6
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
3Y1-23317-A0-00
Holder, Cable
|
3Y1-23317-A0-00 |
— | ||
|
9
|
9
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
|
10
|
10
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
11
|
11
90106-08032-00
Bolt, Dome Head
|
90106-08032-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
13
|
13
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
13
|
13
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
14
|
14
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
15
|
15
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
15
|
15
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
16
|
16
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
16
|
16
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
17
|
17
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
18
|
18
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
19
|
19
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
19
|
19
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
19
|
19
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
20
|
20
2N6-23318-00-00
Wire, Holder 1
|
2N6-23318-00-00 |
— | ||
|
21
|
21
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
24
|
24
3Y1-23319-00-00 Wire, Holder 2 |
3Y1-23319-00-00 |
from US $5.97 |
||
|
25
|
25
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
26
|
26
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
27
|
27
2A6-23408-00-00 Steering Lock Assy |
2A6-23408-00-00 |
from US $77.92 |
||
|
28
|
28
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
29
|
29
3DM-23484-00-00 Cap, Handle Lock |
3DM-23484-00-00 |
from US $11.05 |
||
|
30
|
30
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
31
|
31
90502-09024-00 Spring, Conical |
90502-09024-00 |
from US $2.55 |
||
|
32
|
32
3Y1-84118-01-00
Stay, Headlight 1
|
3Y1-84118-01-00 |
— | ||
|
33
|
33
3Y1-84119-01-00
Stay, Headlight 2
|
3Y1-84119-01-00 |
— | ||
|
34
|
34
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
34
|
34
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
35
|
35
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
36
|
36
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
37
|
37
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
37
|
37
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
40
|
40
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
40
|
40
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
