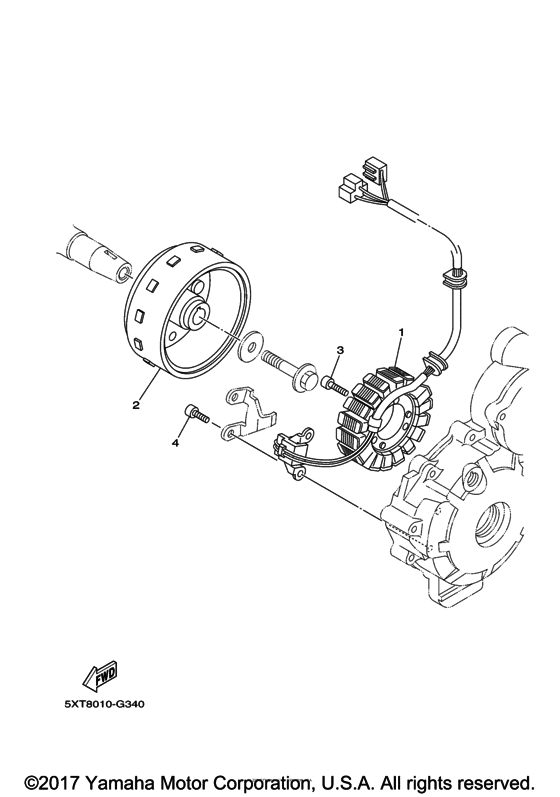

Generator Diagram Yamaha XT250 XT250
- Year
- 2018
- Sales region
- United States (California)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XT-81410-10-00 Stator Assy |
5XT-81410-10-00 |
from US $210 |
||
|
2
|
2
5XT-81450-10-00 Rotor Assy |
5XT-81450-10-00 |
from US $263.89 |
||
|
3
|
3
901-10061-69-00
Bolt
|
901-10061-69-00 |
— | ||
| replacement | |||||
|
3
|
3
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
4
|
4
90110-06161-00 Bolt |
90110-06161-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
