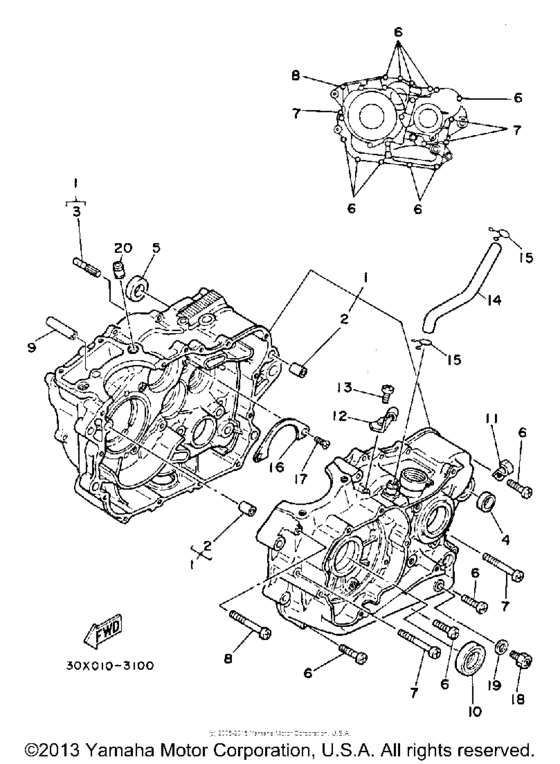

Crankcase Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-15100-00-00
Crankcase Assembly
|
30X-15100-00-00 |
— | ||
|
1
|
1
30X-15100-01-00
Crankcase Assembly
42U-0021595 43E-0006075 |
30X-15100-01-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
30X-15668-00-00 Stopper |
30X-15668-00-00 |
US $3.40 |
||
|
4
|
4
903-87177-83-00
Collar
|
903-87177-83-00 |
— | ||
| replacement | |||||
|
4
|
4
90387-17009-00 Collar |
90387-17009-00 |
from US $5.24 |
||
|
5
|
5
90387-172J0-00 301 Collar |
90387-172J0-00 |
from US $7.79 |
||
|
6
|
6
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
6
|
6
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
7
|
7
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
8
|
8
98506-06070-00 Screw Pan Head |
98506-06070-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
9
|
9
90441-06004-00 Tube, Piping |
90441-06004-00 |
US $7.88 |
||
|
10
|
10
93102-25305-00 Oil Seal |
93102-25305-00 |
from US $12.04 |
||
|
11
|
11
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
12
|
12
51Y-15441-00-00 Holder, Clutch Cable |
51Y-15441-00-00 |
US $15.16 |
||
|
13
|
13
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
14
|
14
30X-11166-00-00 Pipe, Breather 1 |
30X-11166-00-00 |
US $16.96 |
||
|
15
|
15
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
16
|
16
30X-15383-00-00
Plate, Bearing Cover
|
30X-15383-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
17
|
17
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.36 |
||
|
17
|
17
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
18
|
18
3VD-13455-00-00 Plug, Straight Screw |
3VD-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
19
|
19
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
20
|
20
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
