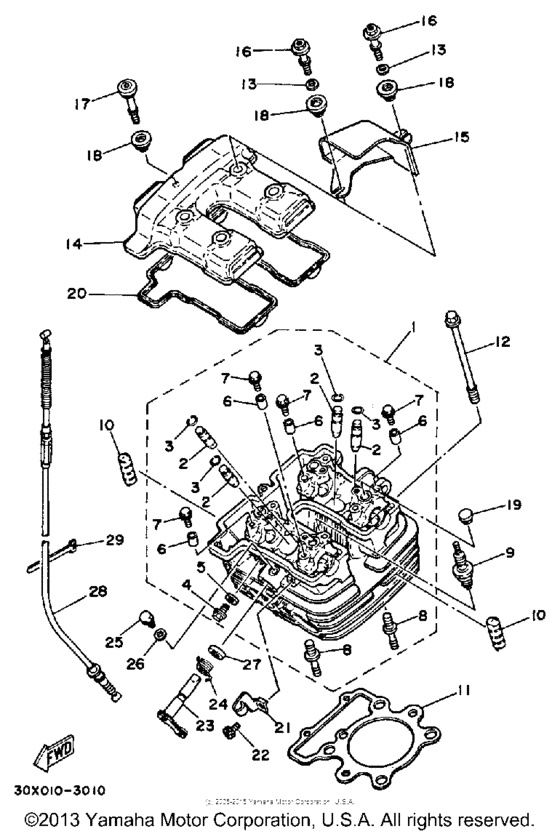

Cylinder head Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-12116-00-00 Seat, Valve Spring |
1LN-12116-00-00 |
US $8.62 |
||
|
1
|
1
999-99014-69-00
Cylinder Head Assembly (30X-111
30X-111 |
999-99014-69-00 |
— | ||
|
1
|
1
51Y-11110-01-00
Cylinder Head Assembly
|
51Y-11110-01-00 |
— | ||
|
1
|
1
51Y-12111-01-00 Valve, Intake |
51Y-12111-01-00 |
from US $113.84 |
||
|
1
|
1
999-99017-38-00
Cylinder Head Assembly
42U-002159~ 43E-000607~ |
999-99017-38-00 |
— | ||
|
2
|
2
1LN-12116-00-00 Seat, Valve Spring |
1LN-12116-00-00 |
US $8.62 |
||
|
2
|
2
999-99022-42-00 Guide, Intake |
999-99022-42-00 |
from US $52.74 |
||
|
3
|
3
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.70 |
||
|
4
|
4
90153-06045-00 Screw, Tapping |
90153-06045-00 |
from US $1.70 |
||
| replacements | |||||
|
4
|
4
90163-06002-00 Screw, Tapping |
90163-06002-00 |
from US $4.25 |
||
|
4
|
4
901-53060-29-00
Screw, Tapping
|
901-53060-29-00 |
— | ||
|
4
|
4
90340-10003-00 Plug, Straight Scrw42U-002159~ 43E-000607~ |
90340-10003-00 |
from US $3.12 |
||
|
5
|
5
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
5
|
5
90430-10171-00 Gasket (5R6)42U-002159~ 43E-000607~ |
90430-10171-00 |
from US $1.39 |
||
|
6
|
6
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
6
|
6
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
7
|
7
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
8
|
8
901-16103-78-00 Bolt, Stud |
901-16103-78-00 |
US $14.59 |
||
|
9
|
9
NGK-D8EA0-00-00 Ngk-D8Ea-10 Pk10P |
NGK-D8EA0-00-00 |
US $5.30 |
||
| replacement | |||||
|
9
|
9
D8E-A0000-00-00 Spark plug D8EA10P |
D8E-A0000-00-00 |
US $50.20 |
||
|
10
|
10
42U-W0001-00-XX
Gasktkit Te Xt250L
TE XT250L SEE GRID H-1 FOR PARTS |
42U-W0001-00-XX |
— | ||
|
10
|
10
30X-11161-00-00
Absorber 1
|
30X-11161-00-00 |
— | ||
|
11
|
11
51Y-11181-00-00 Gasket, Cylinder Head1CYLINDER |
51Y-11181-00-00 |
from US $74.74 |
||
|
12
|
12
90105-10608-00 Bolt, Flange |
90105-10608-00 |
from US $8.69 |
||
|
13
|
13
90201-10126-00 Washer, Plate |
90201-10126-00 |
from US $2.69 |
||
| replacement | |||||
|
13
|
13
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
14
|
14
30X-11191-01-00
Cover, Cylinder Head 1
|
30X-11191-01-00 |
— | ||
|
15
|
15
30X-11192-01-00
Cover, Cylinder Head 2
|
30X-11192-01-00 |
— | ||
|
16
|
16
90109-06604-00 Bolt (4V8) |
90109-06604-00 |
from US $12.37 |
||
|
17
|
17
901-09066-05-00 P97 Bolt (4V8) |
901-09066-05-00 |
from US $13.88 |
||
|
18
|
18
4G0-1111G-00-00 Rubber, Mount 1 |
4G0-1111G-00-00 |
from US $13.88 |
||
|
19
|
19
90338-11125-00 Plug |
90338-11125-00 |
from US $1.94 |
||
|
20
|
20
30X-11193-00-00
Gasket, Head Cover 1
|
30X-11193-00-00 |
— | ||
| replacement | |||||
|
20
|
20
30X-11193-01-00 Gasket, Head Cover 1 |
30X-11193-01-00 |
from US $53.12 |
||
|
21
|
21
30X-12283-00-00
Bracket,decompression
|
30X-12283-00-00 |
— | ||
|
22
|
22
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
22
|
22
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
23
|
23
30X-12288-00-00
Cam, Decompression
|
30X-12288-00-00 |
— | ||
|
24
|
24
90508-18606-00
Spring, Torsion (30X)
|
90508-18606-00 |
— | ||
|
25
|
25
90109-06778-00 Bolt |
90109-06778-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90109-06418-00 Bolt |
90109-06418-00 |
from US $1.70 |
||
|
26
|
26
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
27
|
27
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $5.41 |
||
|
28
|
28
30X-12292-00-00 Cable, Decompression |
30X-12292-00-00 |
from US $65.21 |
||
|
29
|
29
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
29
|
29
42U-W0001-00-XX
Gasktkit Te Xt250L
TE XT250L SEE GRID H-1 FOR PARTS |
42U-W0001-00-XX |
— | ||
