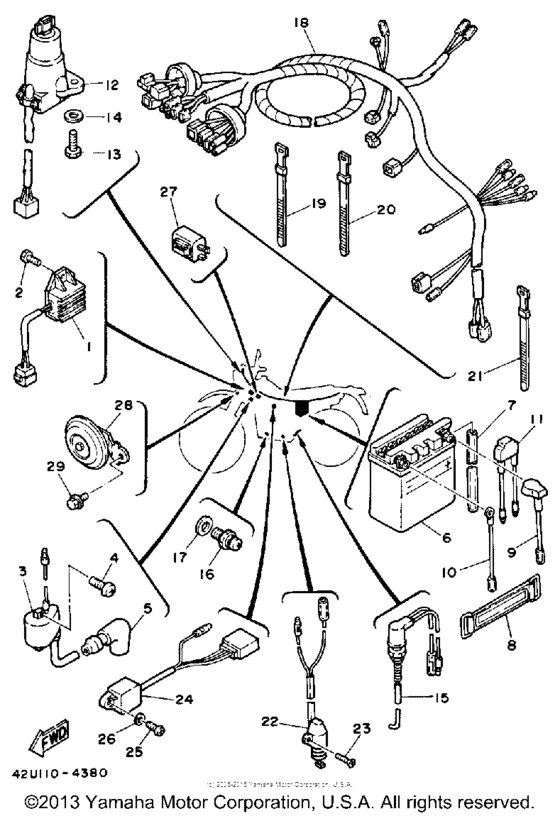

Electrical (1) Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-81960-60-00 Rectifier & Regulator Assembly |
33G-81960-60-00 |
from US $183.58 |
||
|
2
|
2
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
30X-82310-40-00
Ignition Coil Assy
|
30X-82310-40-00 |
— | ||
| replacement | |||||
|
3
|
3
3SR-82310-10-00
Ignition Coil Assy
|
3SR-82310-10-00 |
— | ||
|
4
|
4
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
5
|
5
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
5
|
5
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
6
|
6
BTG-GM33B-00-00
Battery Assembly
|
BTG-GM33B-00-00 |
— | ||
| replacement | |||||
|
6
|
6
YB3-LB000-00-00
Bat Yb3L-B Yu
|
YB3-LB000-00-00 |
— | ||
|
7
|
7
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
8
|
8
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
8
|
8
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
9
|
9
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
10
|
10
558-82116-00-00 Wire, Minus Lead |
558-82116-00-00 |
US $9.41 |
||
|
11
|
11
30X-82180-00-00
Circuit Breaker (3J0-82181-00)
3J0-82181-00 |
30X-82180-00-00 |
— | ||
| replacements | |||||
|
11
|
11
3J0-82180-00-00
Circuit Breaker (3J0-82181-00)
3J0-82181-00 |
3J0-82180-00-00 |
— | ||
|
11
|
11
999-99028-51-00 Fuse Holder Assy (30X)3J0-82181-00 |
999-99028-51-00 |
US $22.52 |
||
|
12
|
12
5R2-82501-01-00
Main Swch Strglck
|
5R2-82501-01-00 |
— | ||
|
13
|
13
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
15
|
15
30X-82530-02-00 Stop Switch Assembly |
30X-82530-02-00 |
US $29.52 |
||
|
16
|
16
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
16
|
16
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
16
|
16
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $24.58 |
||
|
17
|
17
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
18
|
18
42U-82590-51-00
Wire Harness Assembly
|
42U-82590-51-00 |
— | ||
|
19
|
19
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
22
|
22
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
23
|
23
98706-05020-00 Screw, Flat Head |
98706-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
24
|
24
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
25
|
25
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
27
|
27
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
|
28
|
28
1JK-83371-00-00
Horn
|
1JK-83371-00-00 |
— | ||
| replacement | |||||
|
28
|
28
30X-83371-20-00
Horn
|
30X-83371-20-00 |
— | ||
|
29
|
29
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
29
|
29
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
