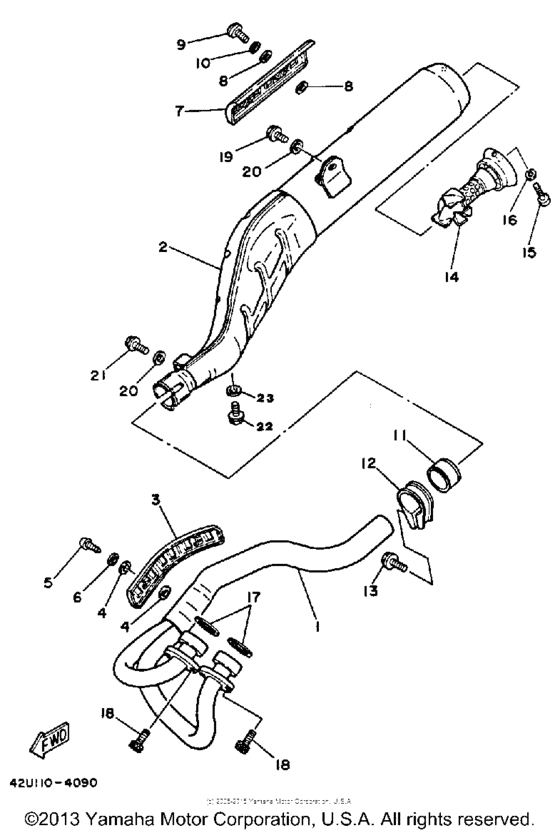

Exhaust Diagram Yamaha XT250 XT250
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-14611-00-00
Pipe, Exhaust L
|
30X-14611-00-00 |
— | ||
|
2
|
2
2GK-14711-01-00
Muffler 1
|
2GK-14711-01-00 |
— | ||
|
3
|
3
55V-14628-00-00
Protector Exhaust
|
55V-14628-00-00 |
— | ||
|
4
|
4
30X-14766-00-00
Washer, Protector
|
30X-14766-00-00 |
— | ||
| replacement | |||||
|
4
|
4
5RB-14766-00-00 Washer, Protector |
5RB-14766-00-00 |
US $2.55 |
||
|
5
|
5
90164-06017-00 Screw, Tapping |
90164-06017-00 |
from US $2.55 |
||
|
6
|
6
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
7
|
7
30X-14728-00-00
Protecter, Muff 2
|
30X-14728-00-00 |
— | ||
|
8
|
8
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
9
|
9
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
9
|
9
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
10
|
10
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
11
|
11
4X7-14714-00-00 Gasket, Muffler |
4X7-14714-00-00 |
from US $49.60 |
||
| replacement | |||||
|
11
|
11
3EG-14714-00-00 Gasket, Muffler |
3EG-14714-00-00 |
from US $49.60 |
||
|
12
|
12
30X-14715-00-00 301 Band, Muffler |
30X-14715-00-00 |
US $47.47 |
||
|
13
|
13
958-16080-45-00
Bolt, Flange
|
958-16080-45-00 |
— | ||
| replacement | |||||
|
13
|
13
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.18 |
||
|
14
|
14
42U-14752-00-00
301 Pipe, Outlet
|
42U-14752-00-00 |
— | ||
|
15
|
15
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
4H7-14613-00-00 Gasket, Exhaust Pipe |
4H7-14613-00-00 |
from US $6.66 |
||
| replacement | |||||
|
17
|
17
4BR-14613-00-00 Gasket, Exhaust Pipe |
4BR-14613-00-00 |
from US $7.63 |
||
|
18
|
18
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
19
|
19
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
20
|
20
90201-081H4-00 Washer, Plate |
90201-081H4-00 |
from US $1.70 |
||
| replacements | |||||
|
20
|
20
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
20
|
20
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
|
21
|
21
95816-08020-00 Bolt, Flange |
95816-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
21
|
21
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
22
|
22
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
23
|
23
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
