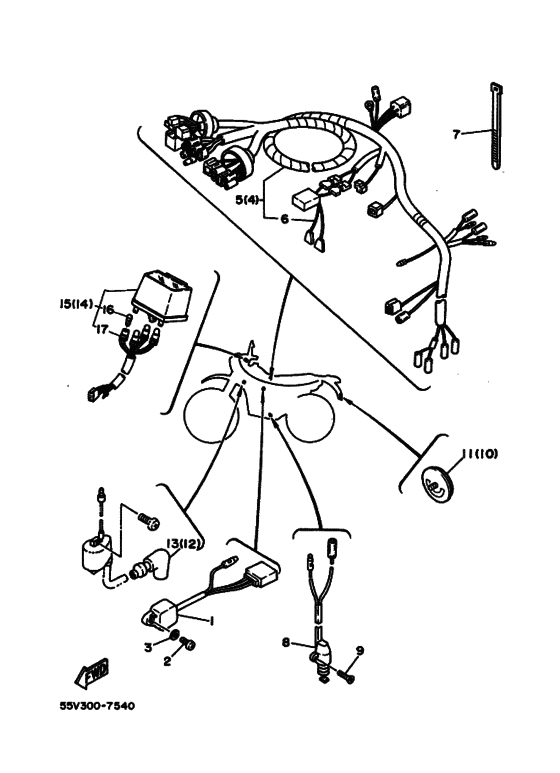

Alternate for electrical Diagram Yamaha XT350 XT350
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 55V0
- Sales region
- Europe (020)
- Engine Capacity
- 350
- Color Variant
- B
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
2
|
2
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
4
|
4
55V-82590-01-00
Wire Harness Assy
|
55V-82590-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
55V-82590-21-00
Wire Harness Assy
|
55V-82590-21-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
57T-81325-00-00
Condenser 1
|
57T-81325-00-00 |
— | ||
|
7
|
7
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
8
|
8
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
9
|
9
98706-05018-00 Screw, Flat Head |
98706-05018-00 |
from US $2.27 |
||
| replacement | |||||
|
9
|
9
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
10
|
10
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
10
|
10
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
11
|
11
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
12
|
12
371-82370-00-00 Plug Cap AssyFOR NORWAY |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
12
|
12
4VW-82370-00-00 Plug Cap AssyFOR NORWAY |
4VW-82370-00-00 |
from US $32.74 |
||
|
13
|
13
421-82370-11-00
Plug Cap Assembly
WITH NOISE SUPPRESSOR |
421-82370-11-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
WITH NOISE SUPPRESSOR |
999-99999-99-00 |
— | ||
|
14
|
14
55V-83540-00-00 Tachometer Assembly |
55V-83540-00-00 |
US $475.72 |
||
| replacement | |||||
|
14
|
14
1ET-83540-00-00
Tachometer Assy
|
1ET-83540-00-00 |
— | ||
|
15
|
15
55V-83540-40-00 Tachometer Assembly |
55V-83540-40-00 |
US $248.74 |
||
|
16
|
16
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-5W; FOR SWEDEN |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
16
|
16
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-5W; FOR SWEDEN |
4G1-84744-00-XX |
— | ||
|
17
|
17
30X-83520-00-00 Socket Cord Assembly (30X-835 |
30X-83520-00-00 |
from US $75.30 |
||
| replacement | |||||
|
17
|
17
5Y1-83520-00-00 Socket Cord Assembly (30X-835 |
5Y1-83520-00-00 |
from US $75.30 |
||
