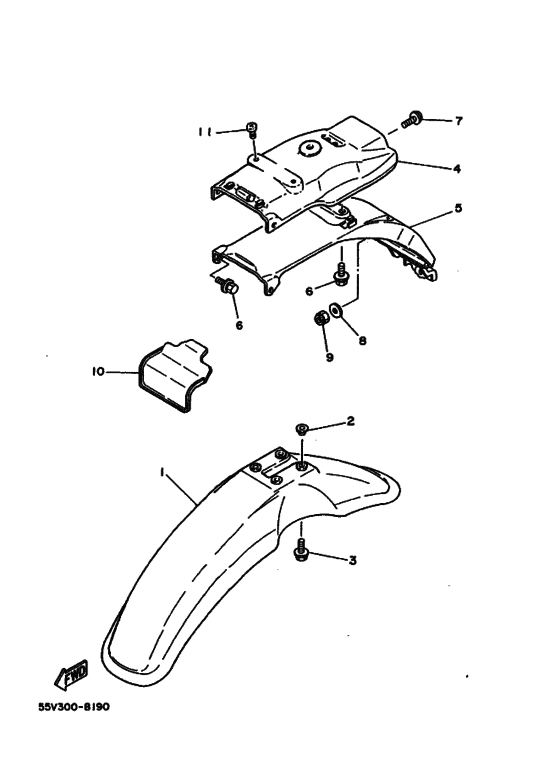

Fender Diagram Yamaha XT350 XT350
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 55V0
- Sales region
- Europe (020)
- Engine Capacity
- 350
- Color Variant
- B
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-21511-00-00 309 Fender, Front (White)UR CLEAN WHITE |
30X-21511-00-00 |
from US $68.08 |
||
|
1
|
1
43F-21511-10-00
Fender, Front
UR YAMAHA BLACK |
43F-21511-10-00 |
— | ||
|
2
|
2
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
4
|
4
30X-21611-00-00
Fender, Rear
UR CLEAN WHITE |
30X-21611-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
UR CLEAN WHITE |
999-99999-99-00 |
— | ||
|
4
|
4
55V-21611-00-00
Fender, Rear
UR YAMAHA BLACK |
55V-21611-00-00 |
— | ||
|
5
|
5
30X-W2164-00-00
License Bracket
|
30X-W2164-00-00 |
— | ||
|
6
|
6
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
6
|
6
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
7
|
7
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
7
|
7
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
8
|
8
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
9
|
9
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
30X-21629-00-00
Guard, Mud
|
30X-21629-00-00 |
— | ||
|
11
|
11
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
