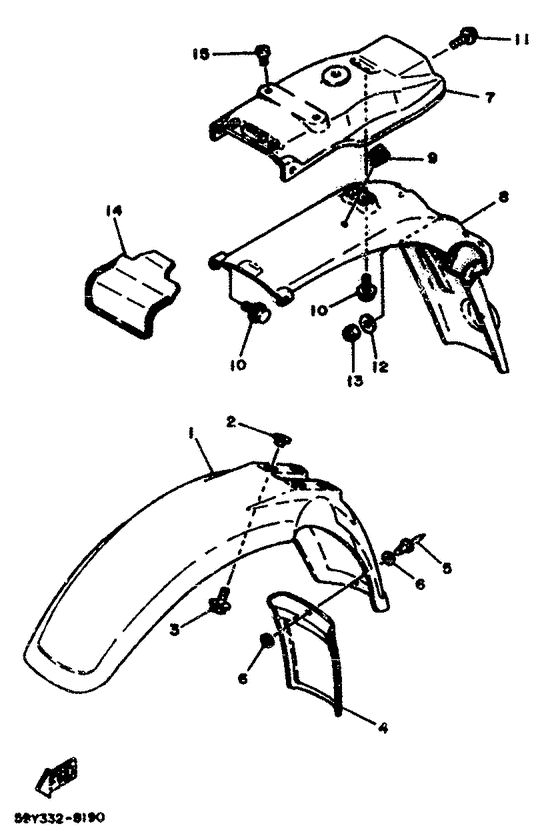

Fender Diagram Yamaha XT350 XT350
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 59Y
- Sales region
- Germany (999)
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
43F-21511-00-00 Fender, FrontUr clean white |
43F-21511-00-00 |
US $132.36 |
||
| replacement | |||||
|
01
|
01
30X-21511-00-00 309 Fender, Front (White)Ur clean white |
30X-21511-00-00 |
from US $68.08 |
||
|
01
|
01
43F-21511-20-00
Fender, Front
Ur yamaha black |
43F-21511-20-00 |
— | ||
| replacement | |||||
|
01
|
01
43F-21511-10-00
Fender, Front
Ur yamaha black |
43F-21511-10-00 |
— | ||
|
02
|
02
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
02
|
02
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
03
|
03
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
04
|
04
43F-21521-00-00
Flap, Front Fender
|
43F-21521-00-00 |
— | ||
|
05
|
05
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $2.05 |
||
|
06
|
06
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
07
|
07
30X-21611-00-00
Fender, Rear
Ur clean white |
30X-21611-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Ur clean white |
999-99999-99-00 |
— | ||
|
07
|
07
55V-21611-00-00
Fender, Rear
Ur yamaha black |
55V-21611-00-00 |
— | ||
|
08
|
08
55V-21685-00-00
Bracket, License
|
55V-21685-00-00 |
— | ||
|
09
|
09
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
10
|
10
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
10
|
10
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
11
|
11
901-19060-61-00
Bolt, With Washer
|
901-19060-61-00 |
— | ||
| replacement | |||||
|
11
|
11
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
12
|
12
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
13
|
13
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
14
|
14
30X-21629-00-00
Guard, Mud
|
30X-21629-00-00 |
— | ||
|
15
|
15
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
