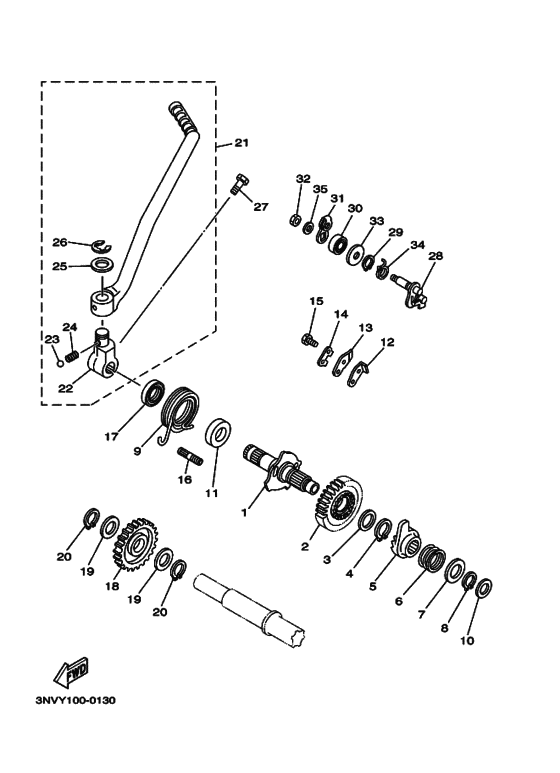

Starter Diagram Yamaha XT350 XT350
- Year
- 2000
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 5LJ2
- Sales region
- Europe (010)
- Engine Capacity
- 350
- Color Variant
- A
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-15660-01-00 Kick Axle Assembly |
30X-15660-01-00 |
from US $118.26 |
||
|
2
|
2
30X-15641-01-00 Gear, Kick |
30X-15641-01-00 |
from US $54.99 |
||
|
3
|
3
90201-20685-00 Washer, Plate |
90201-20685-00 |
from US $1.70 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
3Y1-15671-00-00 Wheel, Ratchet |
3Y1-15671-00-00 |
from US $42.64 |
||
|
6
|
6
90501-16107-00 Spring, Compression |
90501-16107-00 |
from US $2.83 |
||
|
7
|
7
90201-155K6-00 Washer, Plain (1Jl) |
90201-155K6-00 |
from US $2.05 |
||
|
8
|
8
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
9
|
9
905-08324-B5-00 Spring, Torsion |
905-08324-B5-00 |
from US $9.49 |
||
|
10
|
10
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $2.08 |
||
|
11
|
11
90560-17239-00 301 Spacer |
90560-17239-00 |
from US $8.05 |
||
|
12
|
12
2K7-15668-00-00 Stopper |
2K7-15668-00-00 |
from US $8.93 |
||
| replacement | |||||
|
12
|
12
2NX-15668-00-00 Stopper |
2NX-15668-00-00 |
from US $8.93 |
||
|
13
|
13
214-15674-00-00 Guide, Ratchet Wheel |
214-15674-00-00 |
from US $10.20 |
||
| replacement | |||||
|
13
|
13
2NX-15674-00-00 Guide, Ratchet Wheel |
2NX-15674-00-00 |
from US $10.20 |
||
|
14
|
14
214-15686-00-00 Washer, Lock |
214-15686-00-00 |
from US $2.98 |
||
|
15
|
15
970-27060-16-00
Bolt
|
970-27060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
16
|
16
55V-15668-00-00 301 Stopper |
55V-15668-00-00 |
from US $3.40 |
||
|
17
|
17
931-02172-63-00 Oil Seal |
931-02172-63-00 |
from US $4.72 |
||
|
18
|
18
30X-15651-01-00
300 Gear, Kick Idle
27T |
30X-15651-01-00 |
— | ||
|
19
|
19
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
20
|
20
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
21
|
21
30X-15620-01-00 Kick Crank Assembly |
30X-15620-01-00 |
from US $87.53 |
||
|
22
|
22
30X-15621-01-00 Boss, Kick Crank |
30X-15621-01-00 |
US $54.59 |
||
|
23
|
23
93507-32009-00 Ball 7-32 |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
24
|
24
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
25
|
25
90201-153A1-00 Washer (3Xvc) |
90201-153A1-00 |
from US $2.27 |
||
|
26
|
26
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
27
|
27
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
28
|
28
30X-1561A-00-00
Decomp. Lever Assembly
|
30X-1561A-00-00 |
— | ||
|
29
|
29
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.50 |
||
|
30
|
30
93102-10207-00 Oil Seal10-21-5 HS |
93102-10207-00 |
from US $5.13 |
||
|
31
|
31
30X-1561G-00-00
301 Lever, Cable
|
30X-1561G-00-00 |
— | ||
|
32
|
32
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
33
|
33
90201-10614-00 Washer, Plate |
90201-10614-00 |
from US $1.70 |
||
|
34
|
34
905-08146-30-00
301 Spring, Torsion (30X)
|
905-08146-30-00 |
— | ||
|
35
|
35
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
