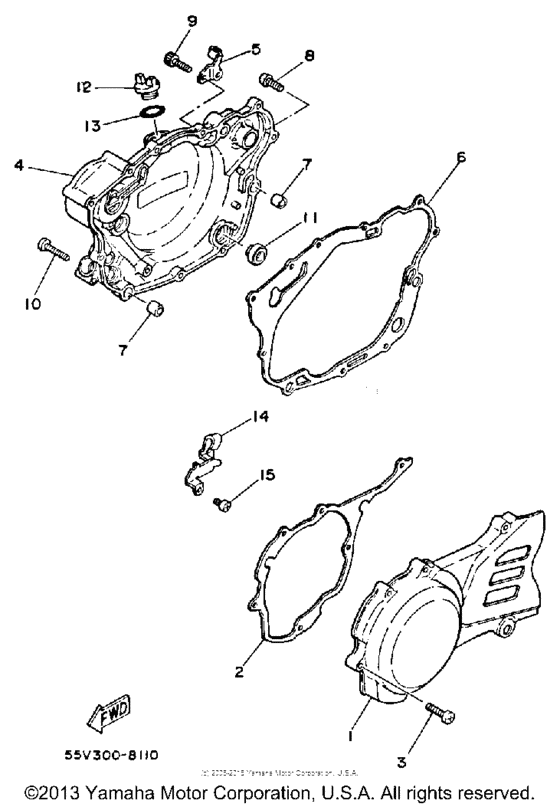

Crankcase cover (1) Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3DC-15411-00-00
Cover, Crankcase 1
|
3DC-15411-00-00 |
— | ||
|
2
|
2
4EL-15451-00-00 Gasket, Crankcase Cover 1 |
4EL-15451-00-00 |
from US $18.28 |
||
|
3
|
3
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
3
|
3
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $2.04 |
||
|
4
|
4
3GJ-15421-00-00 Cover,crankcase 2 |
3GJ-15421-00-00 |
US $213.14 |
||
|
5
|
5
30X-15378-00-00
301 Holder
|
30X-15378-00-00 |
— | ||
|
6
|
6
4EL-15461-00-00 Gasket, Crankcase CoCO |
4EL-15461-00-00 |
from US $22.25 |
||
| replacement | |||||
|
6
|
6
4EL-15461-04-00 Gasket, Crankcase Cover 2CO |
4EL-15461-04-00 |
from US $25.45 |
||
|
7
|
7
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
7
|
7
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
8
|
8
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.18 |
||
|
9
|
9
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.12 |
||
|
10
|
10
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
10
|
10
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
11
|
11
3Y1-15361-00-00 Gauge, Level |
3Y1-15361-00-00 |
from US $9.10 |
||
|
12
|
12
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
12
|
12
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
13
|
13
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
14
|
14
90462-08062-00
Clamp
|
90462-08062-00 |
— | ||
|
15
|
15
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
