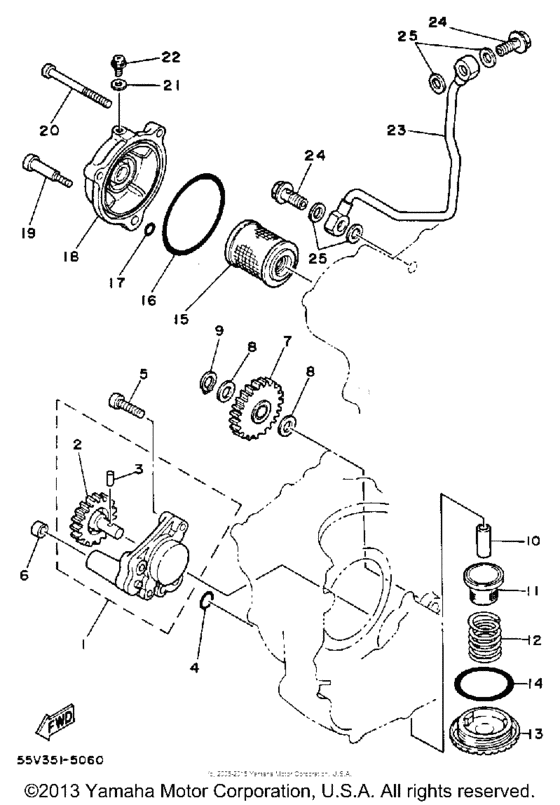

Oil pump Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-13300-00-00
Oil Pump Assembly
|
30X-13300-00-00 |
— | ||
| replacement | |||||
|
1
|
1
30X-13300-10-00
Oil Pump Assy
|
30X-13300-10-00 |
— | ||
|
2
|
2
3Y6-13326-01-00
Gear, Pump Driven 2
23T |
3Y6-13326-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3Y6-13326-10-00 GEAR, PUMP DRIVEN 223T |
3Y6-13326-10-00 |
from US $12.04 |
||
|
3
|
3
93603-12030-00 Pin, Dowel |
93603-12030-00 |
from US $1.84 |
||
|
4
|
4
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
5
|
5
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
6
|
6
90430-06156-00 Gasket |
90430-06156-00 |
from US $1.94 |
||
|
7
|
7
30X-13341-00-00
Gear, Oil Pump Idle
|
30X-13341-00-00 |
— | ||
|
8
|
8
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
9
|
9
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.50 |
||
|
10
|
10
2XK-13416-00-00 Pipe, Oil 1 |
2XK-13416-00-00 |
from US $4.39 |
||
|
11
|
11
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $7.42 |
||
| replacement | |||||
|
11
|
11
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $4.90 |
||
|
12
|
12
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.70 |
||
|
13
|
13
30X-15351-00-00
Plug, Drain
|
30X-15351-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4HC-15351-00-00 Plug, Drain |
4HC-15351-00-00 |
from US $12.12 |
||
|
14
|
14
932-10353-89-00
O-Ring
|
932-10353-89-00 |
— | ||
| replacement | |||||
|
14
|
14
93210-347A1-00 O-Ring |
93210-347A1-00 |
from US $1.70 |
||
|
15
|
15
5H0-13440-00-00
Element Assy, Oil Cleaner
|
5H0-13440-00-00 |
— | ||
| replacement | |||||
|
15
|
15
5H0-13440-09-00 Element Assy, Oil Cleaner |
5H0-13440-09-00 |
from US $12.21 |
||
|
16
|
16
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.89 |
||
|
17
|
17
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
18
|
18
3DC-13447-00-00
Cover, Oil Element J
|
3DC-13447-00-00 |
— | ||
|
19
|
19
901-09064-19-00 Bolt (583 Oil Drain) |
901-09064-19-00 |
from US $5.13 |
||
|
20
|
20
91316-06065-00 Bolt (431) |
91316-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
91317-06065-00 Bolt |
91317-06065-00 |
from US $1.66 |
||
|
21
|
21
90430-05126-00 Gasket |
90430-05126-00 |
from US $1.94 |
||
|
22
|
22
90149-05110-00 Screw |
90149-05110-00 |
from US $1.39 |
||
|
23
|
23
55V-13161-01-00
Pipe, Delivery 1
|
55V-13161-01-00 |
— | ||
|
24
|
24
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
24
|
24
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
25
|
25
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
