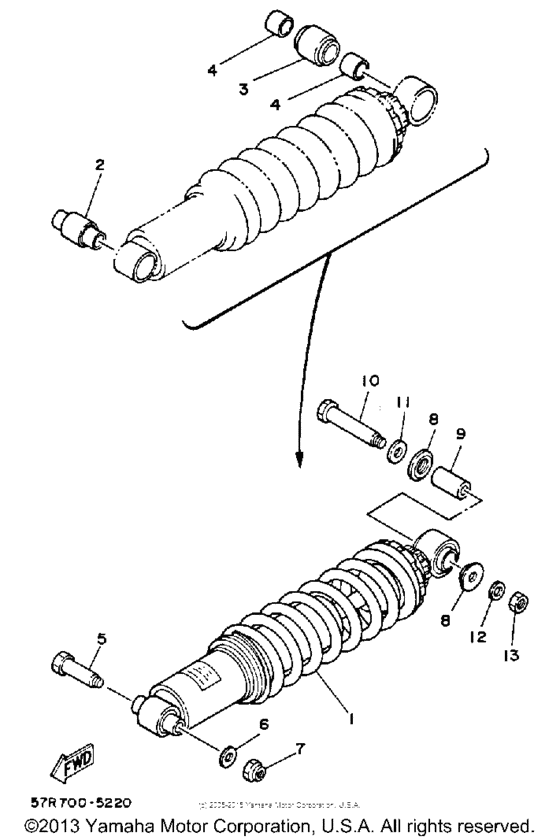

Rear shocks Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YT-22210-10-P0
Shk/abs Assembly, Rearrear
|
3YT-22210-10-P0 |
— | ||
| replacements | |||||
|
1
|
1
3YT-22210-30-P0
Shock Absorber Assy, Rear
|
3YT-22210-30-P0 |
— | ||
|
1
|
1
3YT-22210-00-P0
Shock Absorber Assy, Rear
|
3YT-22210-00-P0 |
— | ||
|
2
|
2
30X-22216-00-00
Bush, Rear Shock Absorber
|
30X-22216-00-00 |
— | ||
|
3
|
3
30X-22226-00-00
Bush, Shock Absorber Lower
|
30X-22226-00-00 |
— | ||
|
4
|
4
90384-18157-00 Bush, Bimetal Formed |
90384-18157-00 |
from US $8.05 |
||
|
5
|
5
90109-10753-00
Bolt
|
90109-10753-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
902-01100-E9-00
Washer, Plate
|
902-01100-E9-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
7
|
7
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
8
|
8
30X-22129-00-00 Cover, Thrust 2 |
30X-22129-00-00 |
from US $12.18 |
||
|
9
|
9
90387-121J0-00 Collar |
90387-121J0-00 |
from US $10.17 |
||
|
10
|
10
90109-10753-00
Bolt
|
90109-10753-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90201-120E6-00 Washer, Plate |
90201-120E6-00 |
from US $2.55 |
||
| replacement | |||||
|
11
|
11
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.55 |
||
|
12
|
12
902-01100-E9-00
Washer, Plate
|
902-01100-E9-00 |
— | ||
| replacement | |||||
|
12
|
12
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
13
|
13
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
