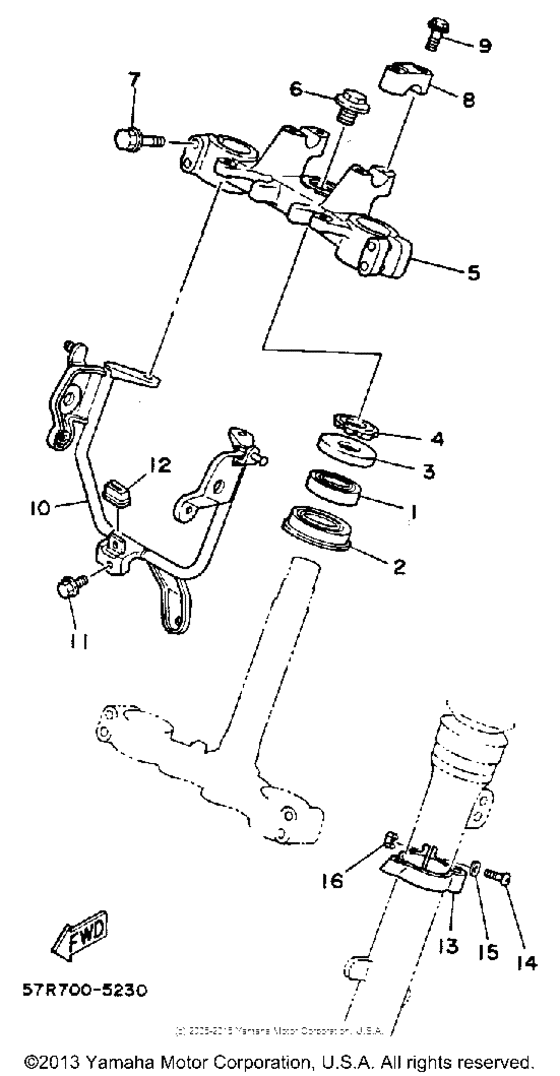

Steering Diagram Yamaha XT350 XT350
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.20 |
||
|
2
|
2
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
3
|
3
3HE-23416-00-00 Cover, Ball Race 2 |
3HE-23416-00-00 |
from US $15.02 |
||
| replacement | |||||
|
3
|
3
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
4
|
4
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
30X-23435-00-98
Crown, Handle
|
30X-23435-00-98 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
7
|
7
95026-08040-00 Bolt, Flange |
95026-08040-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
8
|
8
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
9
|
9
95816-08035-00 Bolt, Flange(36R) |
95816-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.02 |
||
|
10
|
10
30X-23174-00-00
Stay, Headlight
|
30X-23174-00-00 |
— | ||
|
11
|
11
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
12
|
12
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
13
|
13
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
14
|
14
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
14
|
14
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
14
|
14
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
15
|
15
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
15
|
15
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
