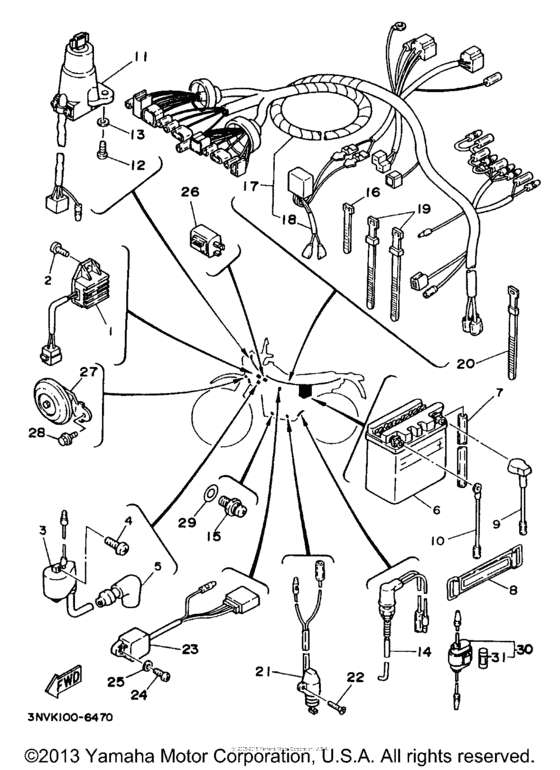

Electrical (1) Diagram Yamaha XT350 XT350
- Year
- 1997
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-81960-60-00 Rectifier & Regulator AssemblyUR MATSUSHITA |
33G-81960-60-00 |
from US $183.58 |
||
|
2
|
2
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
3
|
3
20N-82310-40-00 Ignition Coil Assy |
20N-82310-40-00 |
US $87.20 |
||
| replacements | |||||
|
3
|
3
3SR-82310-10-00
Ignition Coil Assy
|
3SR-82310-10-00 |
— | ||
|
3
|
3
43G-82310-40-00 Ignition Coil Assembly |
43G-82310-40-00 |
US $136.12 |
||
|
4
|
4
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
5
|
5
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
5
|
5
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
6
|
6
BTG-GM33B-00-00
Battery Assembly
|
BTG-GM33B-00-00 |
— | ||
| replacement | |||||
|
6
|
6
YB3-LB000-00-00
Bat Yb3L-B Yu
|
YB3-LB000-00-00 |
— | ||
|
7
|
7
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
8
|
8
34M-82131-00-00 Band, Battery |
34M-82131-00-00 |
from US $6.52 |
||
| replacement | |||||
|
8
|
8
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
|
9
|
9
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
10
|
10
558-82116-00-00 Wire, Minus Lead |
558-82116-00-00 |
US $9.41 |
||
|
11
|
11
2GK-82501-01-00
Main Switch Steering Lock
|
2GK-82501-01-00 |
— | ||
|
12
|
12
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
30X-82530-02-00 Stop Switch Assembly |
30X-82530-02-00 |
US $29.52 |
||
|
15
|
15
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
16
|
16
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
17
|
17
2GK-82590-00-00
Wire Harness Assembly
UR |
2GK-82590-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
18
|
18
57T-81325-00-00
Condenser 1
|
57T-81325-00-00 |
— | ||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
20
|
20
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
21
|
21
5Y1-82566-00-00 Switch, Side StandUR |
5Y1-82566-00-00 |
from US $120.34 |
||
|
22
|
22
90152-05021-00 Screw, Flat HeadUR |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
98707-05016-00 Screw, Flat HeadUR |
98707-05016-00 |
from US $1.35 |
||
|
23
|
23
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
24
|
24
98507-06016-00 Screw, Pan HeadUR |
98507-06016-00 |
from US $1.52 |
||
|
25
|
25
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
26
|
26
30X-83350-20-00
Flasher Relay Assy
UR |
30X-83350-20-00 |
— | ||
|
27
|
27
30X-83371-20-00
Horn
UR |
30X-83371-20-00 |
— | ||
|
28
|
28
95817-06010-00 Bolt, FlangeUR |
95817-06010-00 |
from US $1.18 |
||
|
29
|
29
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
30
|
30
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
30
|
30
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
31
|
31
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
31
|
31
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
