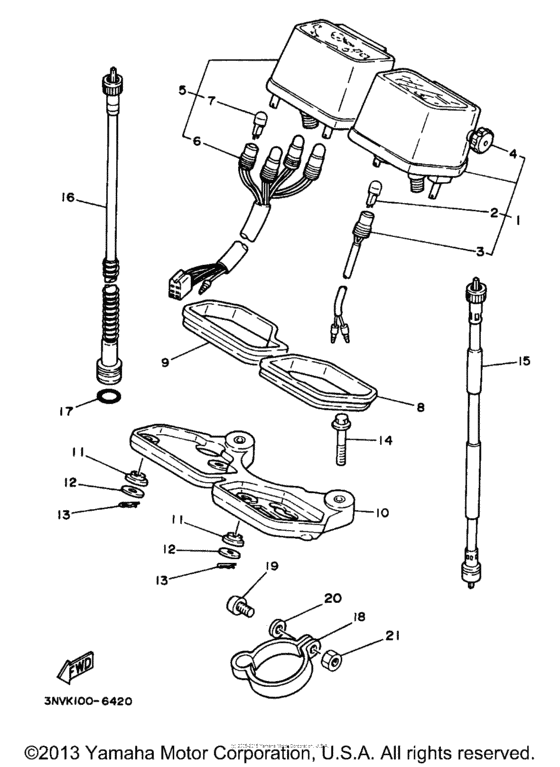

Meter Diagram Yamaha XT350 XT350
- Year
- 1997
- Sales region
- USA
- Engine Capacity
- 350
- Model
- XT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-83570-G1-00
Speedometer Assembly
UR |
43F-83570-G1-00 |
— | ||
|
2
|
2
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
3
|
3
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
4
|
4
5Y1-83578-00-00 Knob, Trip Meter |
5Y1-83578-00-00 |
from US $20.83 |
||
|
5
|
5
1ET-83540-00-00
Tachometer Assy
|
1ET-83540-00-00 |
— | ||
|
6
|
6
5Y1-83520-00-00 Socket Cord Assembly (30X-83530X-835 |
5Y1-83520-00-00 |
from US $75.30 |
||
|
7
|
7
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
8
|
8
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
9
|
9
5Y1-83541-00-00 Damper |
5Y1-83541-00-00 |
from US $18.99 |
||
|
10
|
10
5Y1-83519-00-00 Bracket, Meter |
5Y1-83519-00-00 |
from US $56.65 |
||
|
11
|
11
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
12
|
12
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
13
|
13
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
14
|
14
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
15
|
15
48Y-83550-02-00 Speedometer Cable AsAS |
48Y-83550-02-00 |
from US $25.63 |
||
| replacement | |||||
|
15
|
15
48Y-83550-03-00 Speedometer Cable AssyAS |
48Y-83550-03-00 |
from US $39.98 |
||
|
16
|
16
30X-83560-00-00
Tachometer Cable Ass
|
30X-83560-00-00 |
— | ||
| replacement | |||||
|
16
|
16
30X-83560-01-00 Tachometer Cable Assy |
30X-83560-01-00 |
from US $24.26 |
||
|
17
|
17
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
17
|
17
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
18
|
18
3Y1-26397-00-00
Band
|
3Y1-26397-00-00 |
— | ||
|
19
|
19
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
21
|
21
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
