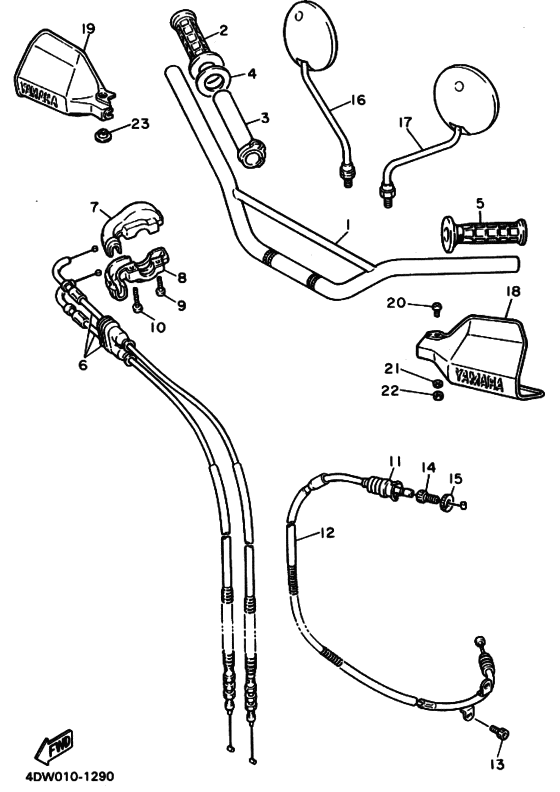

ｽﾃｱﾘﾝｸﾞﾊﾝﾄﾞﾙ.ｹｰﾌﾞﾙ Diagram Yamaha XT400E Artesia
- Year
- 1991
- Colour
- Faraway Blue (FWB; 00NJ)
- Model code
- 4DW1
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3TB-26111-01-00 Handlebarハンドルバー; |
3TB-26111-01-00 |
US $104.09 |
||
|
2
|
2
33G-26242-00-00 Grip (Right)グリツプ ; ライト |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
2
|
2
33G-26242-01-00 Grip (Right)グリツプ ; ライト |
33G-26242-01-00 |
from US $14.09 |
||
|
3
|
3
3Y1-26243-01-00 Tube,throttle Guideチユーブ，スロツトルガイド; |
3Y1-26243-01-00 |
from US $21.39 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leafリング，リーフ; |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
33G-26241-00-00 Grip (Left)グリツプ ; レフト |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
5
|
5
33G-26241-01-00 Grip (Left)グリツプ ; レフト |
33G-26241-01-00 |
from US $19.94 |
||
|
6
|
6
3TB-26302-00-00
Throttle Cable Assy
スロツトルケーブルアセンブリ; |
3TB-26302-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3YF-26302-01-00
Throttle Cable Assy
スロツトルケーブルアセンブリ; |
3YF-26302-01-00 |
— | ||
|
7
|
7
34K-26281-00-00 Cap, Grip Upper |
34K-26281-00-00 |
from US $23.94 |
||
|
8
|
8
1VJ-26282-00-00 Cap, Grip Underキヤツプ，グリツプロワー; |
1VJ-26282-00-00 |
from US $23.80 |
||
|
9
|
9
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
10
|
10
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
10
|
10
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
10
|
10
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cableブーツ，ケーブル; |
1E6-26342-00-00 |
from US $15.68 |
||
|
12
|
12
3TB-26335-00-00 Cable, clutchケーブル，クラツチ; |
3TB-26335-00-00 |
from US $46.84 |
||
| replacement | |||||
|
12
|
12
3TB-26335-01-00 Cable, clutchケーブル，クラツチ; |
3TB-26335-01-00 |
from US $46.84 |
||
|
13
|
13
913-16060-10-00
Bolt, Socket Head
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-10-00 |
— | ||
| replacement | |||||
|
13
|
13
91317-06010-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06010-00 |
from US $1.07 |
||
|
14
|
14
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
14
|
14
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
15
|
15
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
15
|
15
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
16
|
16
3Y1-26290-00-00 Back Mirror Assy (R.h)バツクミラーアセンブリ ; ライト |
3Y1-26290-00-00 |
from US $17.18 |
||
|
17
|
17
5Y1-26290-10-00 Back Mirror Assy (L.h)バツクミラーアセンブリ ; レフト |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
17
|
17
5Y1-26290-11-00 MIRROR ASSY., 2バツクミラーアセンブリ ; レフト |
5Y1-26290-11-00 |
from US $35.99 |
||
|
18
|
18
1VJ-26141-00-00 Guard, Brush 1ガード，ブラシユ １; フアラウエイブルー |
1VJ-26141-00-00 |
US $71.87 |
||
|
19
|
19
3TB-26142-40-00
Guard, Brush 2
ガード，ブラシユ ２; フアラウエイブルー |
3TB-26142-40-00 |
— | ||
|
20
|
20
98501-06035-00 Screw Pan Head |
98501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
20
|
20
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
20
|
20
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
21
|
21
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
21
|
21
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
22
|
22
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
22
|
22
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
22
|
22
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
23
|
23
90387-06500-00 Collarカラー; |
90387-06500-00 |
from US $2.39 |
||
