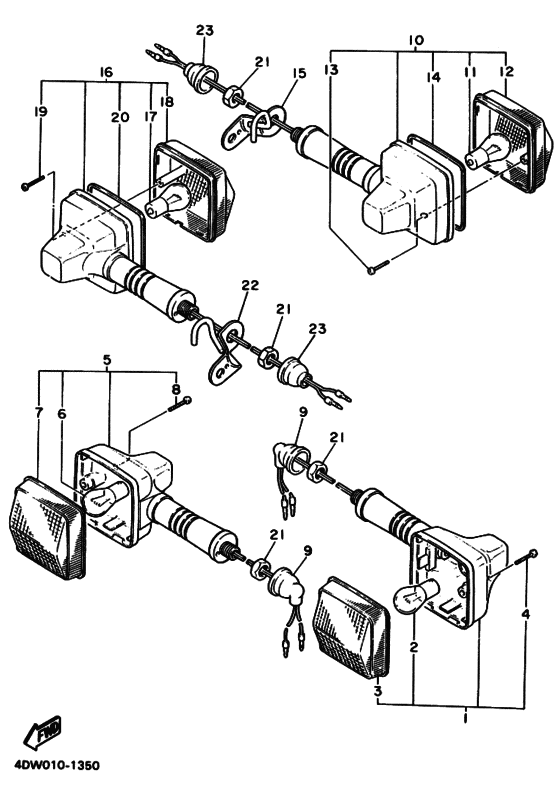

Flasher light Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-83310-20-00
Front Flasher Light Assy 1
フロントフラツシヤライトアセン; （※１） |
34X-83310-20-00 |
— | ||
| replacement | |||||
|
1
|
1
34X-83330-20-00
Rear Flasher Light Assy 1
フロントフラツシヤライトアセン; （※１） |
34X-83330-20-00 |
— | ||
|
2
|
2
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
2
|
2
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
3
|
3
47J-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
47J-83312-00-00 |
US $11.76 |
||
|
4
|
4
97706-40520-00 Screw, Tapping．スクリユ，タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
34X-83330-20-00
Rear Flasher Light Assy 1
フロントフラツシヤライトアセン; （※１） |
34X-83330-20-00 |
— | ||
|
6
|
6
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
6
|
6
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
7
|
7
47J-83322-00-00 Lens, Flasher 2．レンズ，フラツシヤ ２; |
47J-83322-00-00 |
US $11.76 |
||
|
8
|
8
97706-40520-00 Screw, Tapping．スクリユ，タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
9
|
9
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $8.08 |
||
|
10
|
10
2YK-83330-20-00
Rear Flasher Light Assy 1
リヤフラツシヤライトアセンブリ; （※２） |
2YK-83330-20-00 |
— | ||
| replacement | |||||
|
10
|
10
34X-83330-20-00
Rear Flasher Light Assy 1
リヤフラツシヤライトアセンブリ; （※２） |
34X-83330-20-00 |
— | ||
|
11
|
11
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
11
|
11
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
12
|
12
47J-83322-00-00 Lens, Flasher 2．レンズ，フラツシヤ ２; |
47J-83322-00-00 |
US $11.76 |
||
|
13
|
13
97706-40520-00 Screw, Tapping．スクリユ，タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
14
|
14
47J-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
47J-83313-00-00 |
US $3.26 |
||
|
15
|
15
3TB-83368-00-00
Stay, Flasher 1
ステー，フラツシヤ １; |
3TB-83368-00-00 |
— | ||
|
16
|
16
2YK-83340-20-00
Rear Flasher Light Assy 2
（※２） |
2YK-83340-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
（※２） |
999-99999-99-00 |
— | ||
|
17
|
17
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
17
|
17
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
18
|
18
47J-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
47J-83312-00-00 |
US $11.76 |
||
|
19
|
19
97706-40520-00 Screw, Tapping．スクリユ，タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
20
|
20
47J-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
47J-83313-00-00 |
US $3.26 |
||
|
21
|
21
95311-12700-00 Nut (1A2) |
95311-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
21
|
21
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
22
|
22
3TB-83369-00-00
Stay, Flasher 2
ステー，フラツシヤ ２; |
3TB-83369-00-00 |
— | ||
|
23
|
23
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
23
|
23
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
