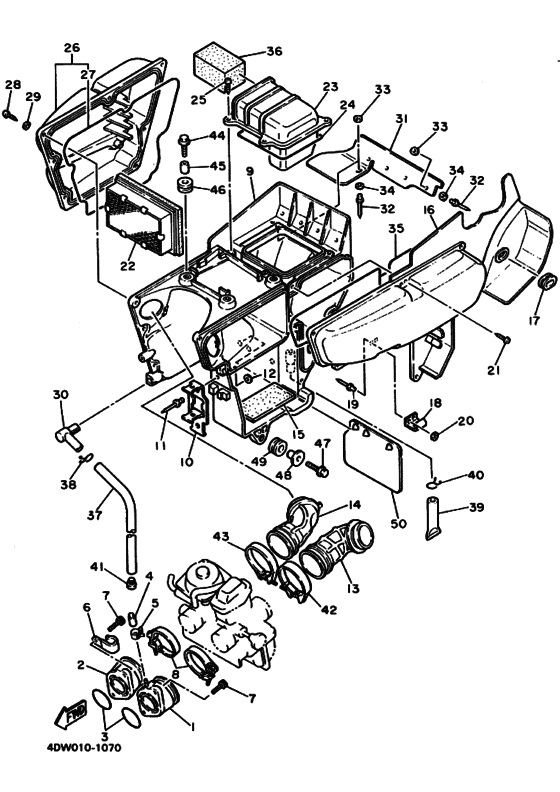

Intake Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DW-13586-00-00
Joint, Carburetor 1
|
4DW-13586-00-00 |
— | ||
|
2
|
2
2RX-13596-00-00 Joint, Carburetor 2 |
2RX-13596-00-00 |
US $77.65 |
||
|
3
|
3
93210-36549-00 O-RingＯ−リング; |
93210-36549-00 |
from US $4.72 |
||
| replacement | |||||
|
3
|
3
93210-36769-00 O-RingＯ−リング; |
93210-36769-00 |
from US $4.72 |
||
|
4
|
4
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.36 |
||
|
5
|
5
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
6
|
6
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
7
|
7
913-16060-20-00
Bolt
ボルト，ヘキサゴンソケツトヘツ; |
913-16060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
91317-06020-00 Boltボルト，ヘキサゴンソケツトヘツ; |
91317-06020-00 |
from US $1.18 |
||
|
8
|
8
90460-46206-00 Hose Clamp Assyクランプ，ホース; |
90460-46206-00 |
from US $6.66 |
||
| replacement | |||||
|
8
|
8
904-50470-02-00 Hose Clamp Assyクランプ，ホース; |
904-50470-02-00 |
from US $6.66 |
||
|
9
|
9
3TB-14411-00-00 Case,air Cleaner 1ケース，エアクリーナー １; |
3TB-14411-00-00 |
US $268.24 |
||
| replacement | |||||
|
9
|
9
3TB-14411-01-00 Case, Air Cleaner 1ケース，エアクリーナー １; |
3TB-14411-01-00 |
US $254.95 |
||
|
10
|
10
3TB-81953-00-00 Stay, Relayステー，リレー; |
3TB-81953-00-00 |
from US $11.90 |
||
|
11
|
11
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
12
|
12
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
3TB-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナー １; |
3TB-14453-00-00 |
from US $48.22 |
||
|
14
|
14
3TB-14454-00-00
Joint
|
3TB-14454-00-00 |
— | ||
|
15
|
15
5X2-24183-00-00 Seat, Batteryダンパ，ロケーテイング ３; |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
5Y1-82122-00-00 Seat, Batteryダンパ，ロケーテイング ３; |
5Y1-82122-00-00 |
from US $4.47 |
||
|
16
|
16
3TB-1441A-00-00 Cover, Cleaner Case 1カバー，クリーナーケース １; |
3TB-1441A-00-00 |
US $123.01 |
||
|
17
|
17
90480-12325-00 Grommet |
90480-12325-00 |
from US $3.12 |
||
|
18
|
18
43G-14436-00-00 Hook |
43G-14436-00-00 |
US $5.76 |
||
|
19
|
19
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
20
|
20
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
21
|
21
97706-50520-00 Screw, Tappingスクリユ，タツピング; |
97706-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
97707-50620-00 Screw, Tappingスクリユ，タツピング; |
97707-50620-00 |
from US $1.22 |
||
|
22
|
22
3TB-14451-01-00 Element, Air Clnrエレメント，エアクリーナー; |
3TB-14451-01-00 |
from US $26.89 |
||
| replacement | |||||
|
22
|
22
3TB-14451-02-00 Element, Air Cleanerエレメント，エアクリーナー; |
3TB-14451-02-00 |
from US $29.11 |
||
|
23
|
23
4DW-14412-00-00
Cap, Cleaner Case 1
キヤツプ，クリーナーケース １; |
4DW-14412-00-00 |
— | ||
|
24
|
24
3TB-14457-00-00 Sealシール; |
3TB-14457-00-00 |
from US $9.49 |
||
| replacement | |||||
|
24
|
24
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $9.44 |
||
|
25
|
25
97706-50520-00 Screw, Tappingスクリユ，タツピング; |
97706-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
97707-50620-00 Screw, Tappingスクリユ，タツピング; |
97707-50620-00 |
from US $1.22 |
||
|
26
|
26
3TB-1441E-00-00 Cover, Cleaner Case 2カバー，クリーナーケース ２; |
3TB-1441E-00-00 |
US $117.19 |
||
|
27
|
27
3TB-1446R-00-00 Seal．シール; |
3TB-1446R-00-00 |
from US $11.23 |
||
| replacement | |||||
|
27
|
27
1VJ-14462-00-00 Seal．シール; |
1VJ-14462-00-00 |
from US $9.44 |
||
|
28
|
28
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
28
|
28
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
29
|
29
929-06056-00-00
Washer, Plate
ワツシヤ，プレート; |
929-06056-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
30
|
30
5Y1-14419-00-00 Pipe |
5Y1-14419-00-00 |
from US $2.69 |
||
|
31
|
31
3TB-21621-00-00 Flap |
3TB-21621-00-00 |
US $36.31 |
||
|
32
|
32
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
33
|
33
90201-047A2-00 Washer, Plateワツシヤ，プレート; |
90201-047A2-00 |
from US $1.70 |
||
|
34
|
34
92990-04200-00 Washerワツシヤ，プレーン; |
92990-04200-00 |
from US $1.21 |
||
|
35
|
35
3TB-14452-00-00 Sealシール; |
3TB-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
35
|
35
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $9.44 |
||
|
36
|
36
4DW-14425-00-00
Damper 1
|
4DW-14425-00-00 |
— | ||
|
37
|
37
90445-126G6-00 Hose (L420)ホース; |
90445-126G6-00 |
US $18.79 |
||
| replacement | |||||
|
37
|
37
90445-121E3-00 Hoseホース; |
90445-121E3-00 |
from US $4.60 |
||
|
38
|
38
90467-12052-00 Clip |
90467-12052-00 |
from US $1.90 |
||
|
39
|
39
34X-1443E-00-00 Pipe, Drainパイプドレイン; |
34X-1443E-00-00 |
from US $4.68 |
||
|
40
|
40
90467-11102-00 Clip, Scissor |
90467-11102-00 |
from US $1.28 |
||
| replacement | |||||
|
40
|
40
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
41
|
41
903-38081-74-00 Plug |
903-38081-74-00 |
from US $1.94 |
||
|
42
|
42
90460-51059-00 Clamp, Hoseクランプ，ホース; |
90460-51059-00 |
from US $7.65 |
||
|
43
|
43
90460-58015-00 Hose Clamp Assy．クランプホース; |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
43
|
43
90450-58002-00 Hose Clamp Assy．クランプホース; |
90450-58002-00 |
from US $4.53 |
||
|
44
|
44
95811-06020-00 Bolt, Flange |
95811-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
44
|
44
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
45
|
45
90387-06033-00 Collarカラー; |
90387-06033-00 |
from US $3.83 |
||
|
46
|
46
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.94 |
||
|
47
|
47
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
47
|
47
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
47
|
47
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
48
|
48
90387-074X3-00 Collarカラー; |
90387-074X3-00 |
US $4.39 |
||
| replacement | |||||
|
48
|
48
90387-075H4-00 Collarカラー; |
90387-075H4-00 |
from US $4.39 |
||
|
49
|
49
90480-15064-00 Grommet |
90480-15064-00 |
from US $5.38 |
||
|
50
|
50
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
