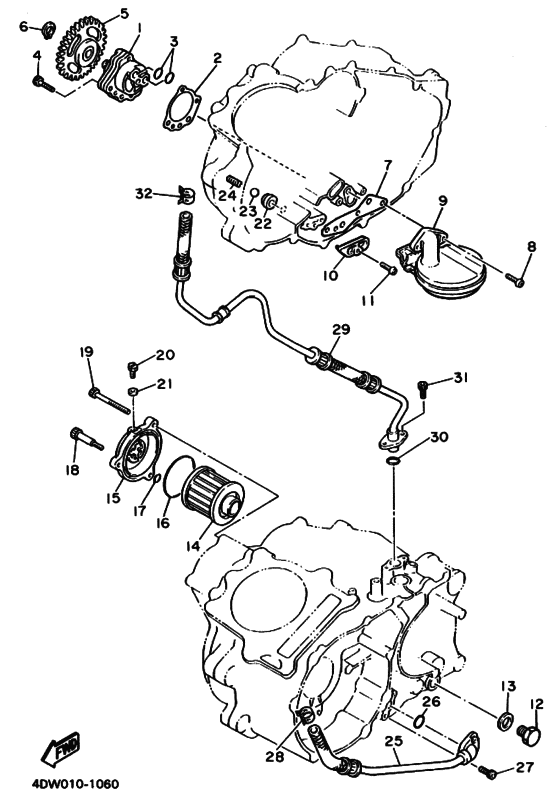

Oil pump Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1VJ-13300-02-00
Oil Pump
|
1VJ-13300-02-00 |
— | ||
|
2
|
2
3SX-13329-00-00 Gasket, Pump Coverガスケツト，ポンプカバー; |
3SX-13329-00-00 |
from US $2.93 |
||
|
3
|
3
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.39 |
||
|
4
|
4
913-16060-35-00
Bolt
ボルト，ヘキサゴンソケツトヘツ; |
913-16060-35-00 |
— | ||
| replacements | |||||
|
4
|
4
90110-06X45-00 Bolt, Hexagon Sockボルト，ヘキサゴンソケツトヘツ; |
90110-06X45-00 |
US $41.20 |
||
|
4
|
4
913-17060-35-00
Bolt,socket
ボルト，ヘキサゴンソケツトヘツ; |
913-17060-35-00 |
— | ||
|
4
|
4
901-1006X-79-00 Bolt, Hexagon Socket Headボルト，ヘキサゴンソケツトヘツ; |
901-1006X-79-00 |
from US $3.98 |
||
|
5
|
5
3AJ-13325-00-00 Gear, Pump Driven |
3AJ-13325-00-00 |
from US $14.48 |
||
|
6
|
6
99009-11400-00 Circlipサークリツプ; |
99009-11400-00 |
from US $1.56 |
||
|
7
|
7
4DW-13415-00-00 Seal, Oil Strainerシール，オイルストレーナー; |
4DW-13415-00-00 |
from US $10.20 |
||
|
8
|
8
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
8
|
8
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
9
|
9
5Y1-W1343-00-00
Strainer Assy
フイルターコンプリート; |
5Y1-W1343-00-00 |
— | ||
| replacement | |||||
|
9
|
9
5Y1-Y134C-00-00
Strainer Assy
フイルターコンプリート; |
5Y1-Y134C-00-00 |
— | ||
|
10
|
10
5Y1-15427-01-00 Cover, Cap 2カバー，キヤツプ ２; |
5Y1-15427-01-00 |
US $10.05 |
||
| replacement | |||||
|
10
|
10
5Y1-15427-10-00 Cover, Cap 2カバー，キヤツプ ２; |
5Y1-15427-10-00 |
from US $9.52 |
||
|
11
|
11
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
12
|
12
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
14
|
14
4X7-13440-90-00 Element Assy, Oil Cleanerエレメントアセンブリ，オイルク; |
4X7-13440-90-00 |
from US $15.26 |
||
|
15
|
15
2WK-13447-00-00 Cover, Oil Elementカバー，オイルエレメント; |
2WK-13447-00-00 |
from US $24.37 |
||
|
16
|
16
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.89 |
||
|
17
|
17
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
18
|
18
901-09064-19-00 Bolt (583 Oil Drain) |
901-09064-19-00 |
from US $5.13 |
||
|
19
|
19
91316-06080-00 Boltボルト，ヘキサゴンソケツトヘツ; |
91316-06080-00 |
from US $2.99 |
||
| replacement | |||||
|
19
|
19
91317-06080-00 Boltボルト，ヘキサゴンソケツトヘツ; |
91317-06080-00 |
from US $3.89 |
||
|
20
|
20
90149-05110-00 Screw |
90149-05110-00 |
from US $1.39 |
||
|
21
|
21
90430-05126-00 Gasket |
90430-05126-00 |
from US $1.94 |
||
|
22
|
22
583-13113-00-00 Seat, Check Ballシート，チエツクボール; |
583-13113-00-00 |
from US $4.04 |
||
|
23
|
23
935-03080-07-00 Ballボール; |
935-03080-07-00 |
from US $1.94 |
||
|
24
|
24
90501-043E0-00 Spring, Compression |
90501-043E0-00 |
from US $1.81 |
||
|
25
|
25
3TB-13464-00-00
Hose, Oil 1
ホース，オイル １; |
3TB-13464-00-00 |
— | ||
|
26
|
26
93210-10197-00 O-Ring (371) |
93210-10197-00 |
from US $2.08 |
||
|
27
|
27
913-16060-16-00
Bolt
ボルト，ヘキサゴンソケツトヘツ; |
913-16060-16-00 |
— | ||
| replacement | |||||
|
27
|
27
91317-06016-00 Boltボルト，ヘキサゴンソケツトヘツ; |
91317-06016-00 |
from US $1.18 |
||
|
28
|
28
90450-22052-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-22052-00 |
from US $7.65 |
||
| replacement | |||||
|
28
|
28
90450-22M14-00 Hose Clamp Assy(64X)ホースクランプアセンブリ; |
90450-22M14-00 |
from US $7.49 |
||
|
29
|
29
3TB-13465-00-00
Hose, Oil 2
ホース，オイル ２; |
3TB-13465-00-00 |
— | ||
|
30
|
30
93210-15171-00 O-Ring |
93210-15171-00 |
from US $1.66 |
||
|
31
|
31
913-16060-16-00
Bolt
ボルト，ヘキサゴンソケツトヘツ; |
913-16060-16-00 |
— | ||
| replacement | |||||
|
31
|
31
91317-06016-00 Boltボルト，ヘキサゴンソケツトヘツ; |
91317-06016-00 |
from US $1.18 |
||
|
32
|
32
90450-22052-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-22052-00 |
from US $7.65 |
||
| replacement | |||||
|
32
|
32
90450-22M14-00 Hose Clamp Assy(64X)ホースクランプアセンブリ; |
90450-22M14-00 |
from US $7.49 |
||
