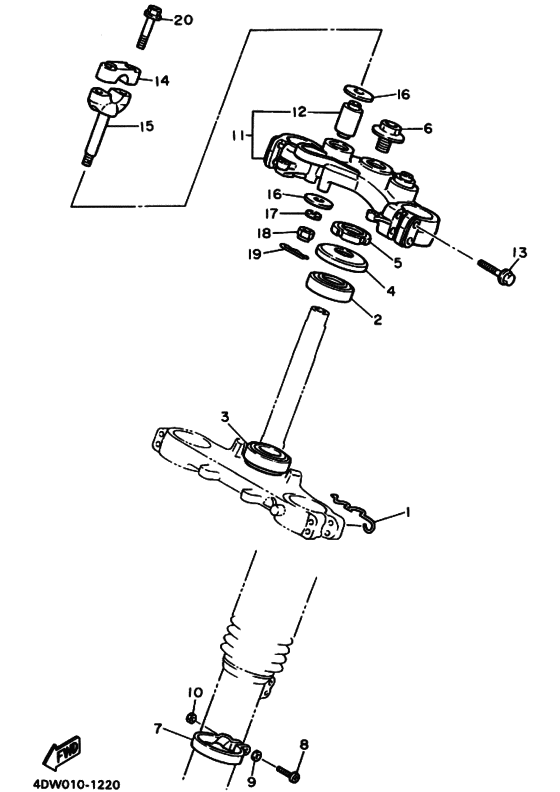

Steering Diagram Yamaha XT400E Artesia
- Year
- 1992
- Colour
- Strong Blue (SB; 002F)
- Model code
- 4DW2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3TB-2331E-00-00 Guide, Cableガイド，ケーブル; |
3TB-2331E-00-00 |
US $9.99 |
||
|
2
|
2
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.20 |
||
|
3
|
3
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
4
|
4
1W1-23416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
1W1-23416-00-00 |
from US $15.02 |
||
|
5
|
5
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
5
|
5
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
5
|
5
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
6
|
6
90105-14102-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-14102-00 |
from US $7.97 |
||
|
7
|
7
34L-23318-01-00 Wire, Holder 1ホルダ，ケーブル １; |
34L-23318-01-00 |
US $18.06 |
||
|
8
|
8
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
9
|
9
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
9
|
9
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
9
|
9
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
10
|
10
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
3TB-W2341-00-00
Crown, Handle
|
3TB-W2341-00-00 |
— | ||
|
12
|
12
5A8-23434-00-00 Holder, Damper．ホルダ，ダンパ; |
5A8-23434-00-00 |
from US $17.85 |
||
| replacement | |||||
|
12
|
12
5A8-23434-01-00 Holder, Damper．ホルダ，ダンパ; |
5A8-23434-01-00 |
from US $19.69 |
||
|
13
|
13
91026-08040-00 Bolt, Flange |
91026-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
14
|
14
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
15
|
15
3Y6-23442-00-98 Holder, Handle Lowerホルダ，ハンドルロワー; ツヤケシクロ |
3Y6-23442-00-98 |
from US $35.85 |
||
|
16
|
16
90201-100A1-00 Washer, Plate (3J6)ワツシヤ，プレート; |
90201-100A1-00 |
from US $2.70 |
||
|
17
|
17
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
18
|
18
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
18
|
18
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
19
|
19
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
20
|
20
95816-08035-00 Bolt, Flange(36R) |
95816-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
