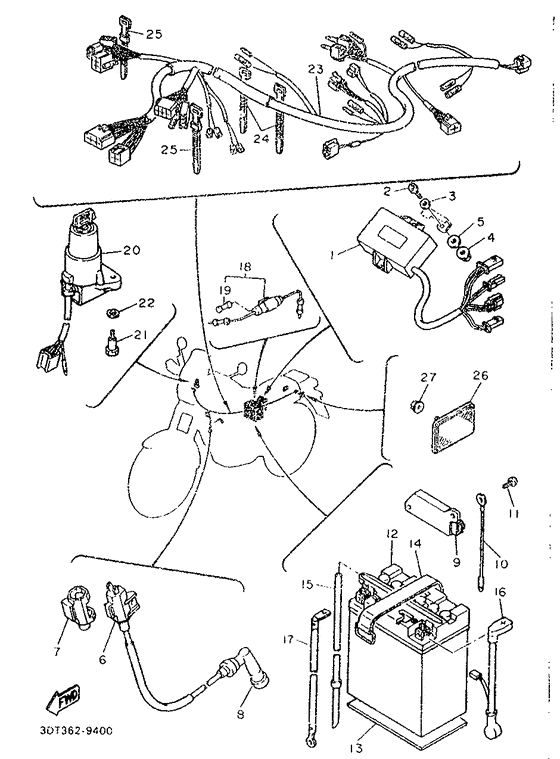

Electrical 1 Diagram Yamaha XT500
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3DT2
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AJ-85540-00-00
C.d.i. Unit Assy
|
3AJ-85540-00-00 |
— | ||
|
02
|
02
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
02
|
02
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
04
|
04
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
04
|
04
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
05
|
05
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
05
|
05
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
06
|
06
1VJ-82310-50-00
Ignition Coil Assy
|
1VJ-82310-50-00 |
— | ||
| replacement | |||||
|
06
|
06
2KF-82310-50-00
Ignition Coil Assy
|
2KF-82310-50-00 |
— | ||
|
07
|
07
1VJ-82317-00-00
Damper, Ignition Coil
|
1VJ-82317-00-00 |
— | ||
|
08
|
08
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
08
|
08
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
09
|
09
47X-81960-A1-00
Rectifier & Regulator Assembly
|
47X-81960-A1-00 |
— | ||
| replacement | |||||
|
09
|
09
47X-81960-A3-00 Rectifier & Regulator Assembly |
47X-81960-A3-00 |
from US $220.41 |
||
|
10
|
10
1VJ-82519-00-00 Wire, Earth Lead |
1VJ-82519-00-00 |
US $1.48 |
||
|
11
|
11
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
12
|
12
1VJ-82110-60-00
Battery Assy
|
1VJ-82110-60-00 |
— | ||
| replacements | |||||
|
12
|
12
907-9EY00-04-00
Battery (Yb12Al-A2)
|
907-9EY00-04-00 |
— | ||
|
12
|
12
CB1-2ALA2-00-00
YB18LA YUASA BATTER
|
CB1-2ALA2-00-00 |
— | ||
|
12
|
12
YUA-YB12A-LA-00
Battery Assy
|
YUA-YB12A-LA-00 |
— | ||
|
12
|
12
YB1-2ALA2-00-00
Bat Yb12Al-A2 Yu
|
YB1-2ALA2-00-00 |
— | ||
|
13
|
13
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
14
|
14
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
15
|
15
90445-087E1-00 Hose (L1500) |
90445-087E1-00 |
from US $10.91 |
||
| replacement | |||||
|
15
|
15
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
16
|
16
1VJ-82115-00-00
Wire, Plus Lead
|
1VJ-82115-00-00 |
— | ||
|
17
|
17
1VJ-82116-00-00
Wire, Minus Lead
|
1VJ-82116-00-00 |
— | ||
|
18
|
18
2UJ-82150-00-00 Fuse Holder Assy |
2UJ-82150-00-00 |
from US $11.76 |
||
| replacement | |||||
|
18
|
18
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
19
|
19
148-82151-00-00 Fuse (12V-20A) |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
19
|
19
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
20
|
20
3AJ-82501-10-00
Main Switch Steering Lock
|
3AJ-82501-10-00 |
— | ||
| replacement | |||||
|
20
|
20
3MA-82501-00-00
Main Switch Steering Lock
|
3MA-82501-00-00 |
— | ||
|
21
|
21
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
3AJ-82590-00-00
Wire Harness Assy
|
3AJ-82590-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
25G-83936-00-00 Band, Switch Cord |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
25
|
25
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
25
|
25
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
26
|
26
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
27
|
27
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
