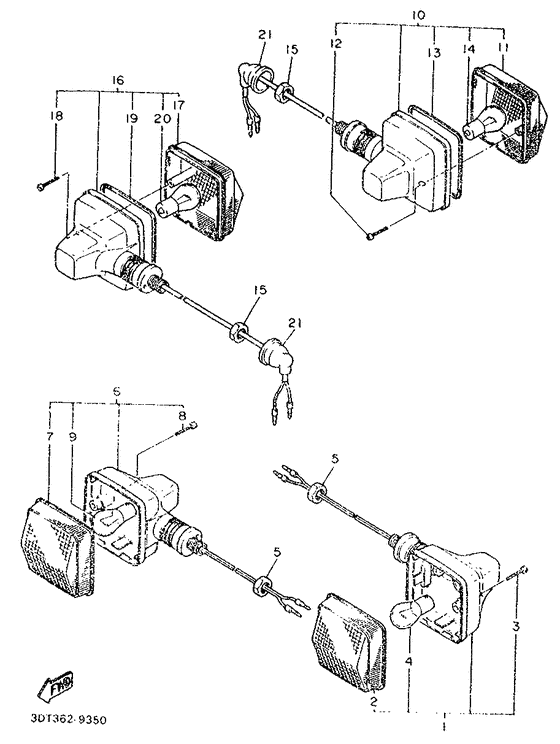

Flasher light Diagram Yamaha XT500
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3DT2
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AJ-83310-00-00 Front Flasher Light Assy 1 |
3AJ-83310-00-00 |
US $75.72 |
||
|
02
|
02
47J-83312-00-00 Lens, Flasher |
47J-83312-00-00 |
US $11.76 |
||
|
03
|
03
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
04
|
04
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
05
|
05
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
06
|
06
3AJ-83320-00-00
Front Flasher Light Assy 2
|
3AJ-83320-00-00 |
— | ||
|
07
|
07
47J-83322-00-00 Lens, Flasher 2 |
47J-83322-00-00 |
US $11.76 |
||
|
08
|
08
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
09
|
09
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
10
|
10
3LD-83330-10-00 Rear Flasher Light Assy 1 |
3LD-83330-10-00 |
US $50.49 |
||
| replacement | |||||
|
10
|
10
3LD-83330-01-00 Rear Flasher Light Assy 1 |
3LD-83330-01-00 |
US $45.75 |
||
|
11
|
11
2KF-83332-00-00 Lens, Flasher |
2KF-83332-00-00 |
US $14.73 |
||
|
12
|
12
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
13
|
13
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
14
|
14
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
15
|
15
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
16
|
16
3LD-83340-10-00 Rear Flasher Light Assy 2Rear flasher light assy 2 |
3LD-83340-10-00 |
US $50.49 |
||
| replacement | |||||
|
16
|
16
3LD-83340-01-00
Rear Flasher Light Assy 2
|
3LD-83340-01-00 |
— | ||
|
17
|
17
2KF-83342-00-00 Lens, Flasher 2 |
2KF-83342-00-00 |
US $14.73 |
||
|
18
|
18
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
19
|
19
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
20
|
20
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
21
|
21
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $8.08 |
||
