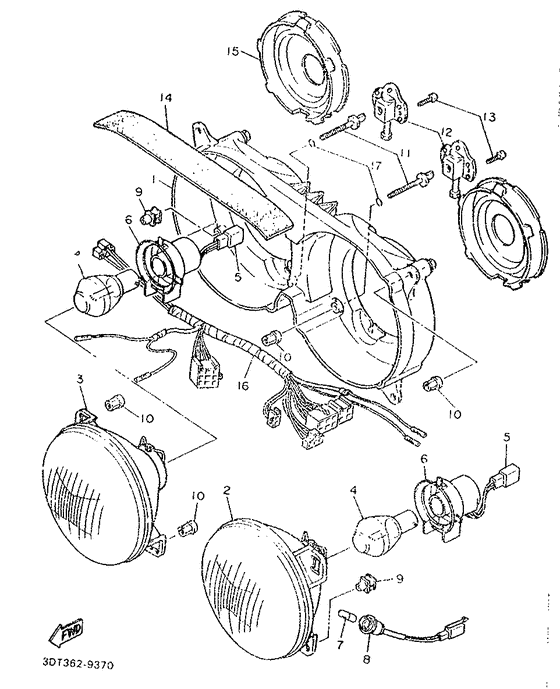

Headlight Diagram Yamaha XT500
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3DT2
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2LJ-84330-A0-00
Body Assembly
|
2LJ-84330-A0-00 |
— | ||
|
02
|
02
3AJ-84320-00-00
Lens Assy
|
3AJ-84320-00-00 |
— | ||
|
03
|
03
3AJ-8432A-00-00
Lens Assy
|
3AJ-8432A-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
14A-84112-40-00
Socket
|
14A-84112-40-00 |
— | ||
| replacement | |||||
|
05
|
05
4GA-84112-00-00
Socket
|
4GA-84112-00-00 |
— | ||
|
06
|
06
5T8-84397-00-00
Cover, Socket
|
5T8-84397-00-00 |
— | ||
|
07
|
07
4E2-84347-00-00 Bulb (12V-4W) |
4E2-84347-00-00 |
US $4.82 |
||
|
08
|
08
2LA-84312-00-00
Cord Assy
|
2LA-84312-00-00 |
— | ||
|
09
|
09
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
10
|
10
51L-84332-00-00 Spring, Screw |
51L-84332-00-00 |
from US $4.96 |
||
|
11
|
11
2AX-84331-00-00
Screw, Rim Adjusting
|
2AX-84331-00-00 |
— | ||
|
12
|
12
46X-8430M-00-00 Gear Unit Assembly |
46X-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
12
|
12
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
13
|
13
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
13
|
13
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
14
|
14
2GH-84396-00-00
Cover
|
2GH-84396-00-00 |
— | ||
|
15
|
15
2LA-84397-00-00
Cover, Socket
|
2LA-84397-00-00 |
— | ||
|
16
|
16
3AJ-84359-40-00
Cord, Headlight
|
3AJ-84359-40-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
