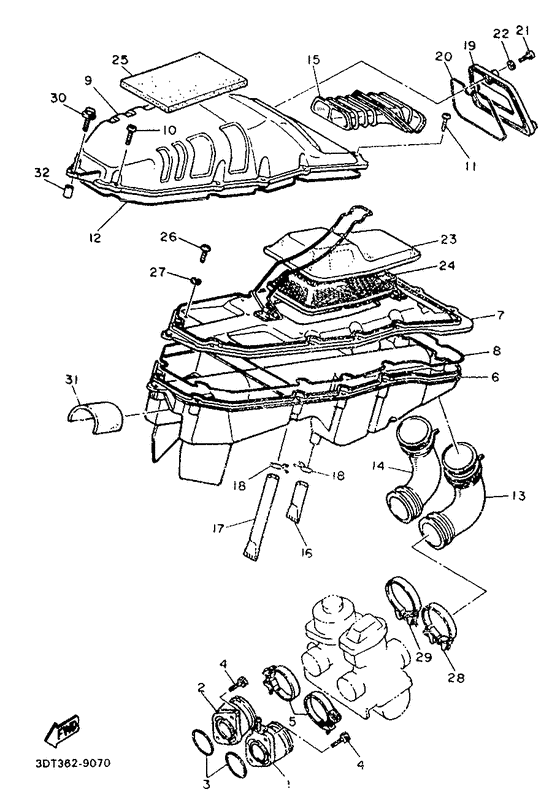

Intake Diagram Yamaha XT500
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3DT2
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
43F-13586-01-00 Joint, Carburetor 1 |
43F-13586-01-00 |
from US $86.56 |
||
|
02
|
02
2RX-13596-00-00 Joint, Carburetor 2 |
2RX-13596-00-00 |
US $77.65 |
||
|
03
|
03
93210-36549-00 O-Ring |
93210-36549-00 |
from US $4.72 |
||
| replacement | |||||
|
03
|
03
93210-36769-00 O-Ring |
93210-36769-00 |
from US $4.72 |
||
|
04
|
04
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
04
|
04
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
05
|
05
90460-46206-00 Hose Clamp Assy |
90460-46206-00 |
from US $6.66 |
||
| replacement | |||||
|
05
|
05
904-50470-02-00 Hose Clamp Assy |
904-50470-02-00 |
from US $6.66 |
||
|
06
|
06
1VJ-14411-02-00
Case, Air Cleaner 1
|
1VJ-14411-02-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2RW-W1441-00-00
Air Cleaner Case Comp
|
2RW-W1441-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.44 |
||
|
09
|
09
1VJ-14421-01-00
Case, Air Cleaner 2
|
1VJ-14421-01-00 |
— | ||
|
10
|
10
97706-50530-00 Screw, Tapping |
97706-50530-00 |
US $2.69 |
||
| replacement | |||||
|
10
|
10
97707-50530-00 Screw, Tapping |
97707-50530-00 |
from US $2.69 |
||
|
11
|
11
97706-50525-00 Screw, Tapping |
97706-50525-00 |
US $1.70 |
||
| replacement | |||||
|
11
|
11
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.81 |
||
|
12
|
12
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.44 |
||
|
13
|
13
1VJ-14453-00-00
Joint, Air Cleaner 1
|
1VJ-14453-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1VJ-14454-00-00
Joint
|
1VJ-14454-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
2RW-14437-00-00
Duct
|
2RW-14437-00-00 |
— | ||
|
16
|
16
3AJ-1443E-00-00 Pipe, Drain |
3AJ-1443E-00-00 |
from US $5.24 |
||
|
17
|
17
3DS-1443E-00-00
Pipe, Drain
|
3DS-1443E-00-00 |
— | ||
|
18
|
18
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
19
|
19
2RW-14412-00-00
Cap, Cleaner Case 1
|
2RW-14412-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
5T0-14457-00-00
Seal
|
5T0-14457-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.44 |
||
|
21
|
21
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
22
|
22
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
23
|
23
2RW-14451-00-00 Element, Air Cleaner |
2RW-14451-00-00 |
US $63.69 |
||
|
24
|
24
2RW-14458-00-00
Guide
|
2RW-14458-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
1VJ-14426-00-00 Damper 2 |
1VJ-14426-00-00 |
US $13.77 |
||
|
26
|
26
97706-50520-00 Screw, Tapping |
97706-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
27
|
27
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
28
|
28
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
29
|
29
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
29
|
29
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
30
|
30
95802-06022-00 Bolt, Flange |
95802-06022-00 |
US $1.07 |
||
| replacements | |||||
|
30
|
30
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
30
|
30
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
31
|
31
1VJ-14425-00-00
Damper 1
|
1VJ-14425-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
32
|
32
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
