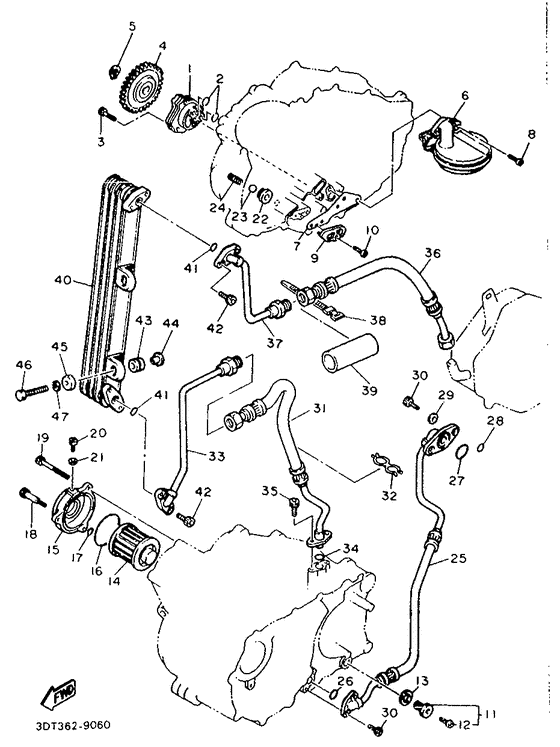

Oil pump Diagram Yamaha XT500
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3DT2
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1VJ-13300-01-00
Oil Pump Assy
|
1VJ-13300-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99021-17-00
Oil Pump Set (1Vj)
|
999-99021-17-00 |
— | ||
|
02
|
02
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.39 |
||
|
03
|
03
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
03
|
03
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
03
|
03
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
03
|
03
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
04
|
04
3AJ-13325-00-00 Gear, Pump Driven |
3AJ-13325-00-00 |
from US $14.48 |
||
|
05
|
05
99009-11400-00 Circlip |
99009-11400-00 |
from US $1.56 |
||
|
06
|
06
5Y1-W1343-00-00
Strainer Assy
|
5Y1-W1343-00-00 |
— | ||
| replacement | |||||
|
06
|
06
5Y1-Y134C-00-00
Strainer Assy
|
5Y1-Y134C-00-00 |
— | ||
|
07
|
07
5Y1-13415-01-00 Seal, Oil Strainer |
5Y1-13415-01-00 |
from US $7.18 |
||
| replacement | |||||
|
07
|
07
4DW-13415-00-00 Seal, Oil Strainer |
4DW-13415-00-00 |
from US $10.20 |
||
|
08
|
08
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
09
|
09
5Y1-15427-01-00 Cover, Cap 2 |
5Y1-15427-01-00 |
US $10.05 |
||
| replacement | |||||
|
09
|
09
5Y1-15427-10-00 Cover, Cap 2 |
5Y1-15427-10-00 |
from US $9.52 |
||
|
10
|
10
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
11
|
11
11H-13455-00-00 Plug, Straight Screw |
11H-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
12
|
12
98901-06008-00 Screw, Bind |
98901-06008-00 |
US $1.42 |
||
| replacement | |||||
|
12
|
12
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
14
|
14
4X7-13440-90-00 Element Assy, Oil Cleaner |
4X7-13440-90-00 |
from US $15.26 |
||
|
15
|
15
2WK-13447-00-00 Cover, Oil Element |
2WK-13447-00-00 |
from US $24.37 |
||
|
16
|
16
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.89 |
||
|
17
|
17
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
18
|
18
901-09064-19-00 Bolt (583 Oil Drain) |
901-09064-19-00 |
from US $5.13 |
||
|
19
|
19
91316-06080-00 Bolt |
91316-06080-00 |
from US $2.99 |
||
| replacement | |||||
|
19
|
19
91317-06080-00 Bolt |
91317-06080-00 |
from US $3.89 |
||
|
20
|
20
90149-05110-00 Screw |
90149-05110-00 |
from US $1.39 |
||
|
21
|
21
90430-05126-00 Gasket |
90430-05126-00 |
from US $1.94 |
||
|
22
|
22
583-13113-00-00 Seat, Check Ball |
583-13113-00-00 |
from US $4.04 |
||
|
23
|
23
935-03080-07-00 Ball |
935-03080-07-00 |
from US $1.94 |
||
|
24
|
24
90501-043E0-00 Spring, Compression |
90501-043E0-00 |
from US $1.81 |
||
|
25
|
25
1VJ-13464-01-00
Hose, Oil 1
|
1VJ-13464-01-00 |
— | ||
|
26
|
26
93210-10197-00 O-Ring (371) |
93210-10197-00 |
from US $2.08 |
||
|
27
|
27
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.39 |
||
|
28
|
28
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
29
|
29
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
30
|
30
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
30
|
30
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
31
|
31
1VJ-13465-01-00
Hose, Oil 2
|
1VJ-13465-01-00 |
— | ||
|
32
|
32
90464-20064-00 Clamp |
90464-20064-00 |
from US $1.70 |
||
|
33
|
33
3DS-13416-00-00
Pipe, Oil 1
|
3DS-13416-00-00 |
— | ||
|
34
|
34
93210-15171-00 O-Ring |
93210-15171-00 |
from US $1.66 |
||
|
35
|
35
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
35
|
35
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
36
|
36
1VJ-13466-02-00
Hose, Oil Cooler
|
1VJ-13466-02-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
3DS-13418-00-00
Pipe, Oil 2
|
3DS-13418-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
38
|
38
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
39
|
39
1VJ-13488-00-00
Pipe, Oil Hose Guide
|
1VJ-13488-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
3AJ-13470-00-00
Oil Cooler Assy
|
3AJ-13470-00-00 |
— | ||
|
41
|
41
93210-10560-00
O-Ring
|
93210-10560-00 |
— | ||
|
42
|
42
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
42
|
42
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
43
|
43
904-80152-35-00
Grommet
|
904-80152-35-00 |
— | ||
| replacement | |||||
|
43
|
43
90480-12475-00 Grommet(2Gh) |
90480-12475-00 |
from US $1.35 |
||
|
44
|
44
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.91 |
||
|
45
|
45
902-09061-74-00
Washer (2H9)
|
902-09061-74-00 |
— | ||
| replacement | |||||
|
45
|
45
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
46
|
46
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
46
|
46
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
47
|
47
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
47
|
47
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
