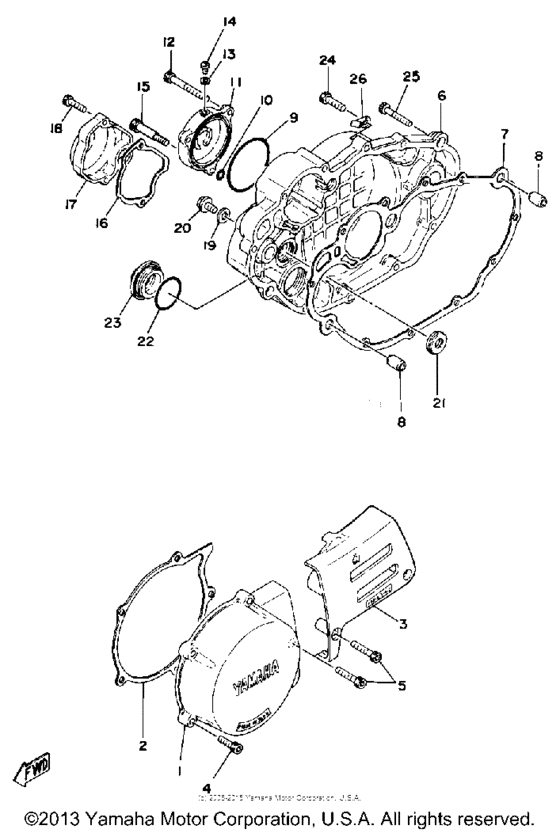

Crankcase cover Diagram Yamaha XT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-15411-00-00
Cover, Crankcase L
|
583-15411-00-00 |
— | ||
|
2
|
2
3HT-15451-00-00 Gasket, Crcs Cover |
3HT-15451-00-00 |
from US $19.27 |
||
|
3
|
3
583-15421-00-00 Cover, Crankcase R |
583-15421-00-00 |
from US $101.09 |
||
|
4
|
4
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
5
|
5
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
5
|
5
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
5
|
5
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
5
|
5
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
6
|
6
583-W1542-00-00
Cover, Crankcase 3 (583-15431-0
583-15431-0 |
583-W1542-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
583-15431-0 |
999-99999-99-00 |
— | ||
|
7
|
7
3HT-15462-00-00 Gasket,crcs Cvr 3 |
3HT-15462-00-00 |
from US $21.46 |
||
| replacements | |||||
|
7
|
7
3HT-15462-01-00 Gasket, Crankcase Cover 3 |
3HT-15462-01-00 |
from US $26.64 |
||
|
7
|
7
3HT-15462-R1-00 Gasket, Crankcase Cover 3 |
3HT-15462-R1-00 |
from US $21.89 |
||
|
8
|
8
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
8
|
8
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
9
|
9
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.89 |
||
|
10
|
10
93210-07438-00 O-Ring |
93210-07438-00 |
from US $1.98 |
||
|
11
|
11
583-13447-01-00 Cover, Oil Element |
583-13447-01-00 |
from US $29.65 |
||
|
12
|
12
913-16060-60-00
Bolt
|
913-16060-60-00 |
— | ||
| replacement | |||||
|
12
|
12
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
13
|
13
90430-05126-00 Gasket |
90430-05126-00 |
from US $1.94 |
||
|
13
|
13
2H0-00000-20-00
Gsktkt Xt/tt500E/f
FOR KIT COMPONENT |
2H0-00000-20-00 |
— | ||
|
14
|
14
90149-05110-00 Screw |
90149-05110-00 |
from US $1.39 |
||
|
15
|
15
90109-06511-00 Bolt |
90109-06511-00 |
from US $2.69 |
||
|
16
|
16
583-15457-00-00 Gasket |
583-15457-00-00 |
from US $16.01 |
||
| replacement | |||||
|
16
|
16
3HT-15457-00-00 Gasket |
3HT-15457-00-00 |
from US $11.60 |
||
|
17
|
17
583-15417-00-00
Cover, Cap
|
583-15417-00-00 |
— | ||
|
18
|
18
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
19
|
19
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
20
|
20
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $3.12 |
||
|
21
|
21
93101-14089-00 Oil Seal |
93101-14089-00 |
from US $8.88 |
||
|
22
|
22
93210-34474-00 O-Ring |
93210-34474-00 |
from US $3.04 |
||
|
23
|
23
583-15425-00-00
Cover, Generator R
|
583-15425-00-00 |
— | ||
|
24
|
24
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
25
|
25
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
25
|
25
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
26
|
26
90465-08076-00 Clamp |
90465-08076-00 |
from US $2.50 |
||
