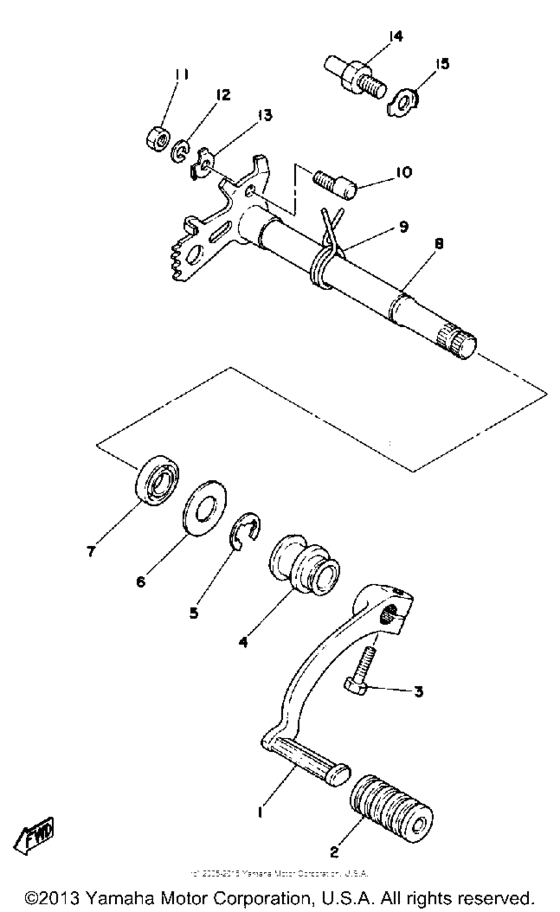

Shift shaft (2) Diagram Yamaha XT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UL-18111-00-00
Pedal, Shift
|
3UL-18111-00-00 |
— | ||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
4
|
4
583-18131-00-00 Boot, Sealing |
583-18131-00-00 |
from US $10.06 |
||
|
5
|
5
99001-12600-00 Circlip |
99001-12600-00 |
from US $1.56 |
||
|
6
|
6
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
7
|
7
93109-14010-00 Oil Seal, Sdo-Type |
93109-14010-00 |
from US $5.74 |
||
|
8
|
8
2J2-18103-00-00 Shaft, Shift |
2J2-18103-00-00 |
from US $67.15 |
||
|
9
|
9
90508-32052-00 Spring, Torsion (214-18124-00)214-18124-00 |
90508-32052-00 |
from US $6.09 |
||
|
10
|
10
90149-06017-00 Screw, Spec''l Shape (214-18186214-18186 |
90149-06017-00 |
from US $4.96 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
90215-06016-00 Washer, Lock |
90215-06016-00 |
from US $1.84 |
||
|
14
|
14
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
14
|
14
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
15
|
15
90215-08115-00 Washer, Lock |
90215-08115-00 |
from US $1.70 |
||
