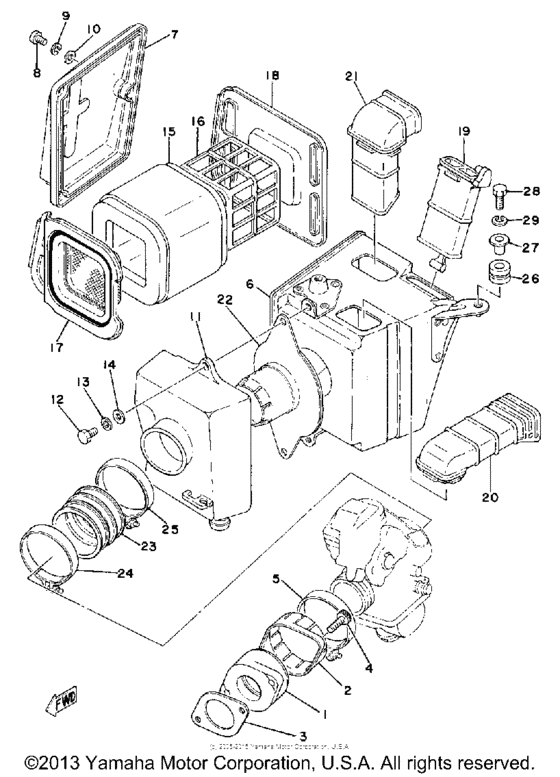

Intake Diagram Yamaha XT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-13565-01-00 Joint, Carburetor |
583-13565-01-00 |
from US $112.19 |
||
|
2
|
2
256-13564-00-00 Cover, Carb.joint |
256-13564-00-00 |
from US $17.21 |
||
|
3
|
3
583-13556-01-00 Gasket, Manifold |
583-13556-01-00 |
from US $5.58 |
||
| replacement | |||||
|
3
|
3
3HT-13556-00-00 Gasket, Manifold |
3HT-13556-00-00 |
from US $8.93 |
||
|
4
|
4
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
4
|
4
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
5
|
5
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
6
|
6
583-14411-01-00
Case, Air Cleaner 1
|
583-14411-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
583-14422-00-00
Cap, Cleaner Case 2
|
583-14422-00-00 |
— | ||
|
8
|
8
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
10
|
10
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
11
|
11
583-14421-00-00 Case, Air Cleaner 2 |
583-14421-00-00 |
from US $122.41 |
||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
583-14451-09-00 Element, Air Clnr |
583-14451-09-00 |
from US $21.49 |
||
| replacement | |||||
|
15
|
15
583-14451-08-00 ELEMENT, AIR CLEANER |
583-14451-08-00 |
US $21.73 |
||
|
16
|
16
583-14458-00-00
Guide, Element
|
583-14458-00-00 |
— | ||
|
17
|
17
583-14468-01-00
Plate, Element Ftng
|
583-14468-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
583-14472-00-00
Plate, Element
|
583-14472-00-00 |
— | ||
|
19
|
19
583-14437-00-00
Duct
|
583-14437-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
583-14431-00-00
Silencer, Intake 1
|
583-14431-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
583-14441-00-00
Silencer, Intake 2
|
583-14441-00-00 |
— | ||
|
22
|
22
583-14485-00-00
Pipe, Joint
|
583-14485-00-00 |
— | ||
|
23
|
23
3H1-14453-00-00
Joint, Air Clnr 1
|
3H1-14453-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90460-61063-00 Hose Clamp Assy |
90460-61063-00 |
from US $8.22 |
||
| replacements | |||||
|
24
|
24
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
24
|
24
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
25
|
25
90460-61063-00 Hose Clamp Assy |
90460-61063-00 |
from US $8.22 |
||
| replacements | |||||
|
25
|
25
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
25
|
25
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
26
|
26
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
27
|
27
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
28
|
28
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
28
|
28
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
