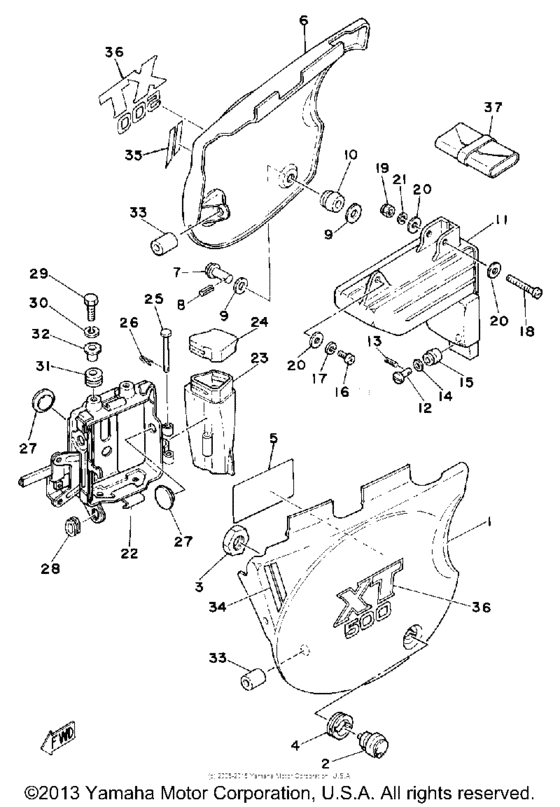

Side cover tool Diagram Yamaha XT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4T9-21711-00-20
Cover, Side (L.h) (L.h.)
|
4T9-21711-00-20 |
— | ||
|
2
|
2
1E6-21708-00-00 Side Cover Lock Assembly |
1E6-21708-00-00 |
from US $54.32 |
||
|
3
|
3
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
4
|
4
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
5
|
5
4R9-21683-00-00
Plate, Spec
|
4R9-21683-00-00 |
— | ||
|
6
|
6
4R9-21721-00-20
Cover, Side 2
|
4R9-21721-00-20 |
— | ||
|
7
|
7
583-21714-00-00 Knob, Side Cover 1 |
583-21714-00-00 |
from US $10.51 |
||
|
8
|
8
91609-25018-00 Pin, Spring |
91609-25018-00 |
from US $4.11 |
||
|
9
|
9
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
9
|
9
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
10
|
10
583-21747-00-00 Damper |
583-21747-00-00 |
from US $4.53 |
||
|
11
|
11
1T2-21171-00-00 Box, Tool |
1T2-21171-00-00 |
from US $37.17 |
||
|
12
|
12
583-21714-00-00 Knob, Side Cover 1 |
583-21714-00-00 |
from US $10.51 |
||
|
13
|
13
91609-25018-00 Pin, Spring |
91609-25018-00 |
from US $4.11 |
||
|
14
|
14
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.81 |
||
| replacement | |||||
|
14
|
14
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
15
|
15
583-21747-00-00 Damper |
583-21747-00-00 |
from US $4.53 |
||
|
16
|
16
98506-06014-00 Screw Pan Head |
98506-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
98506-06045-00 Screw Pan Head |
98506-06045-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.66 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
2H0-21240-00-00
Box, Batt
|
2H0-21240-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
1E6-21245-00-00
Box
|
1E6-21245-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
1E6-21399-00-00
Cap, Tool Box
|
1E6-21399-00-00 |
— | ||
|
25
|
25
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
26
|
26
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
27
|
27
371-82121-00-00 Pad, Battery |
371-82121-00-00 |
from US $4.39 |
||
|
28
|
28
90480-01176-00 Grommet |
90480-01176-00 |
from US $4.11 |
||
|
29
|
29
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
29
|
29
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
32
|
32
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
33
|
33
90445-11418-00 Hose (L70) |
90445-11418-00 |
from US $1.84 |
||
| replacement | |||||
|
33
|
33
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.70 |
||
|
34
|
34
4R9-21783-00-00
Emblem 3
|
4R9-21783-00-00 |
— | ||
|
35
|
35
4R9-21784-00-00
Emblem 4
|
4R9-21784-00-00 |
— | ||
|
36
|
36
4R9-21785-00-00
Emblem 5
|
4R9-21785-00-00 |
— | ||
|
37
|
37
1JN-W2810-00-00
Tool Kit (1E6-28100-10)
1E6-28100-10 |
1JN-W2810-00-00 |
— | ||
