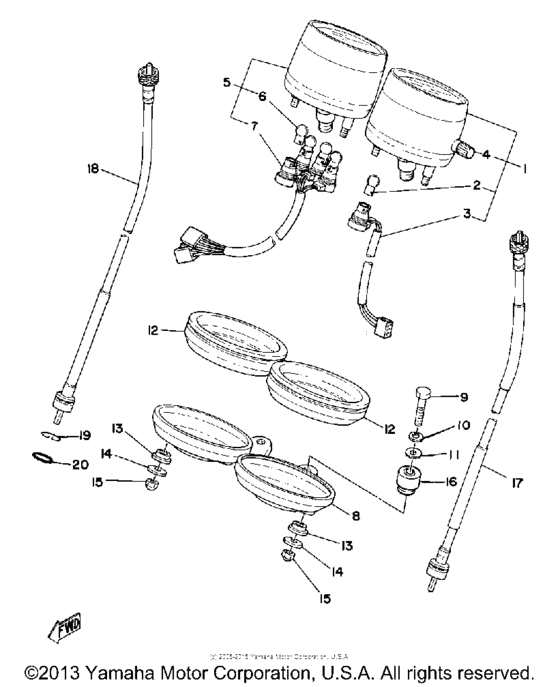

Speedometer tachometer Diagram Yamaha XT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3H6-83570-A0-00
Speedometer Assembly
|
3H6-83570-A0-00 |
— | ||
|
2
|
2
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
2
|
2
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
3
|
3
1E6-83536-60-00
Socket, Meter
|
1E6-83536-60-00 |
— | ||
| replacement | |||||
|
3
|
3
56U-83536-00-00
Socket, Meter
|
56U-83536-00-00 |
— | ||
|
4
|
4
1E6-83578-10-00
Knob, Trip Meter
|
1E6-83578-10-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
56U-83540-F0-00
Tachometerasy
|
56U-83540-F0-00 |
— | ||
| replacement | |||||
|
5
|
5
3BH-83540-00-00
Tachometer Assy
|
3BH-83540-00-00 |
— | ||
|
6
|
6
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
6
|
6
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
7
|
7
1E6-83520-60-00
Socket Cord Assembly
|
1E6-83520-60-00 |
— | ||
| replacement | |||||
|
7
|
7
3BH-83520-00-00
Socket Cord Assy
|
3BH-83520-00-00 |
— | ||
|
8
|
8
1E6-83519-60-00
Bracket, Meter
|
1E6-83519-60-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
9
|
9
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
11
|
11
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
12
|
12
1E6-83523-60-00 Damper |
1E6-83523-60-00 |
from US $23.62 |
||
|
13
|
13
1E6-83526-60-00 Damper 2 |
1E6-83526-60-00 |
from US $13.77 |
||
|
14
|
14
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
14
|
14
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
15
|
15
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
16
|
16
1E6-23445-00-00
Damper
|
1E6-23445-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1M1-83550-01-00 Speedometer Cable (3H6-83550-003H6-83550-00 |
1M1-83550-01-00 |
from US $52.50 |
||
|
18
|
18
1E6-83560-52-00 Tachometer Cable |
1E6-83560-52-00 |
from US $50.70 |
||
|
19
|
19
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
20
|
20
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
20
|
20
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
