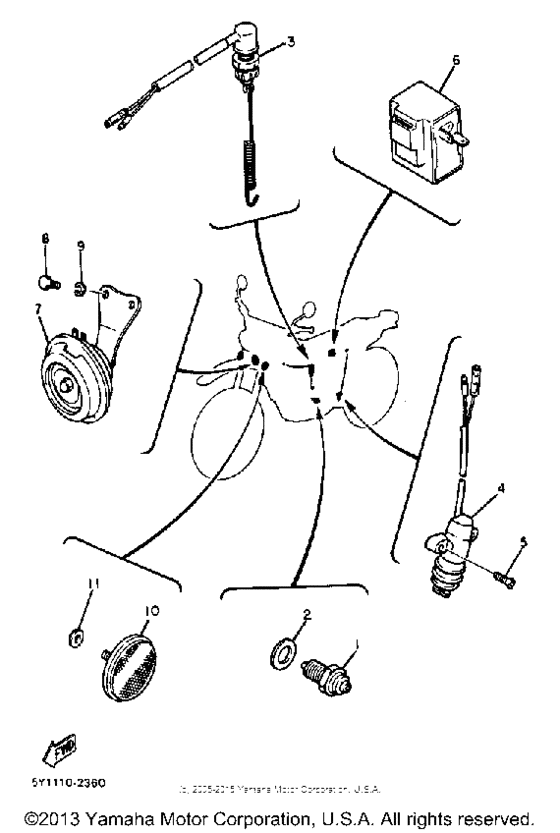

Electrical (2) Diagram Yamaha XT550
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
2
|
2
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
3
|
3
5Y1-82530-02-00
Stop Switch Assembly
|
5Y1-82530-02-00 |
— | ||
|
4
|
4
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
5
|
5
98706-05020-00 Screw, Flat Head |
98706-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
6
|
6
5Y1-83350-20-00 Flasher Relay Assy |
5Y1-83350-20-00 |
from US $49.63 |
||
| replacement | |||||
|
6
|
6
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
|
7
|
7
33G-83371-20-00 Horn |
33G-83371-20-00 |
from US $27.22 |
||
| replacement | |||||
|
7
|
7
4GL-83371-00-00 Horn |
4GL-83371-00-00 |
from US $43.11 |
||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
11
|
11
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
