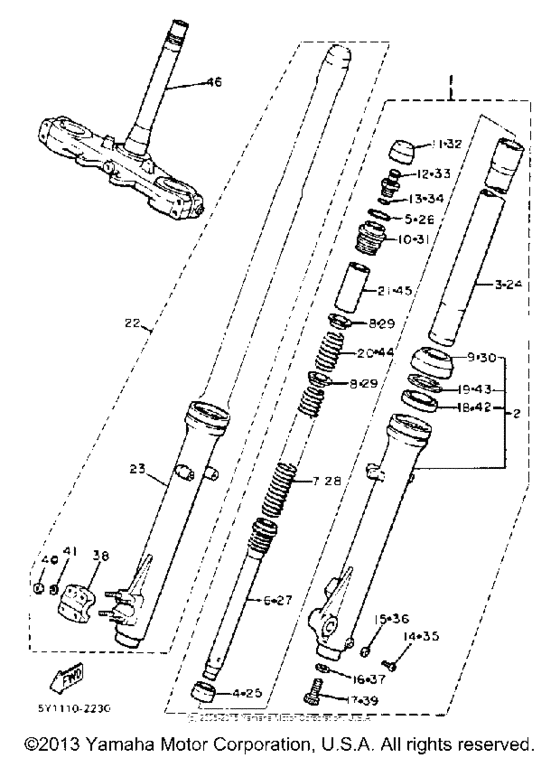

Front fork Diagram Yamaha XT550
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-23102-00-00
Front Fork Assembly L
|
5Y1-23102-00-00 |
— | ||
|
2
|
2
5Y1-23126-00-38
Tube, Outer 1
CLEAR BUFFING |
5Y1-23126-00-38 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
CLEAR BUFFING |
999-99999-99-00 |
— | ||
|
3
|
3
5Y1-23124-00-00
Tube, Inner 1
|
5Y1-23124-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
3R4-23173-L0-00
Spindle, Taper
|
3R4-23173-L0-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
6
|
6
5Y1-23170-00-00
Cylinder, Frtfrk
|
5Y1-23170-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
5Y1-23141-00-00
Spring, Front Fork
|
5Y1-23141-00-00 |
— | ||
|
8
|
8
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
5Y1-23144-00-00
Seal, Dust
|
5Y1-23144-00-00 |
— | ||
|
10
|
10
1W4-23111-L1-00
Bolt, Cap
|
1W4-23111-L1-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1W1-23185-L0-00
Cover, Valve
|
1W1-23185-L0-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
509-23190-L0-00
Air Valve
|
509-23190-L0-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
509-23163-L0-00
O-Ring
|
509-23163-L0-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
14
|
14
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
14
|
14
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
15
|
15
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
16
|
16
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
17
|
17
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
18
|
18
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $13.14 |
||
|
19
|
19
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
20
|
20
5Y1-23151-00-00
Spring, Rebound
|
5Y1-23151-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
5Y1-23118-00-00
Spacer
|
5Y1-23118-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
5Y1-23103-00-00
Front Fork Assembly R
|
5Y1-23103-00-00 |
— | ||
|
23
|
23
5Y1-23136-00-38
Tube, Outer 2
CLEAR BUFFING |
5Y1-23136-00-38 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
CLEAR BUFFING |
999-99999-99-00 |
— | ||
|
24
|
24
5Y1-23124-00-00
Tube, Inner 1
|
5Y1-23124-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
3R4-23173-L0-00
Spindle, Taper
|
3R4-23173-L0-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
27
|
27
5Y1-23170-00-00
Cylinder, Frtfrk
|
5Y1-23170-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
5Y1-23141-00-00
Spring, Front Fork
|
5Y1-23141-00-00 |
— | ||
|
29
|
29
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
5Y1-23144-00-00
Seal, Dust
|
5Y1-23144-00-00 |
— | ||
|
31
|
31
1W4-23111-L1-00
Bolt, Cap
|
1W4-23111-L1-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
1W1-23185-L0-00
Cover, Valve
|
1W1-23185-L0-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
509-23190-L0-00
Air Valve
|
509-23190-L0-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
509-23163-L0-00
O-Ring
|
509-23163-L0-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
35
|
35
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
35
|
35
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
36
|
36
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
37
|
37
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
38
|
38
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
38
|
38
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
39
|
39
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
40
|
40
95311-06600-00 Nut |
95311-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
40
|
40
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
41
|
41
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
42
|
42
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $13.14 |
||
|
43
|
43
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
44
|
44
5Y1-23151-00-00
Spring, Rebound
|
5Y1-23151-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
5Y1-23118-00-00
Spacer
|
5Y1-23118-00-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
5Y1-23340-00-98
Under Bracket
|
5Y1-23340-00-98 |
— | ||
| replacement | |||||
|
46
|
46
5Y3-23340-30-98
Under Bracket Comp
|
5Y3-23340-30-98 |
— | ||
