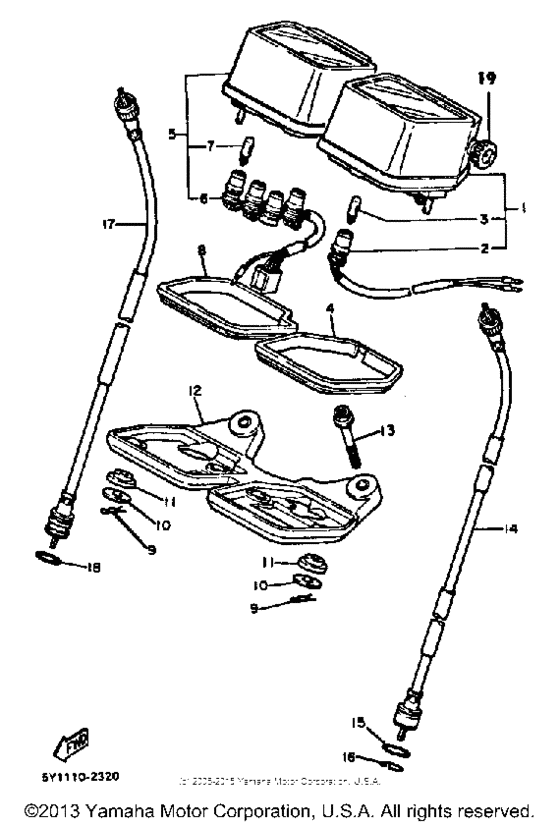

Speedometer tachometer Diagram Yamaha XT550
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-83570-G1-00
Speedometer Assembly
|
43F-83570-G1-00 |
— | ||
|
2
|
2
2JX-83536-A0-00
Socket Cord Assy
|
2JX-83536-A0-00 |
— | ||
| replacement | |||||
|
2
|
2
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
4
|
4
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
5
|
5
5Y3-83540-00-00
Tachometer Assembly (49N-83540-
49N-83540- |
5Y3-83540-00-00 |
— | ||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
49N-83540- |
999-99999-99-00 |
— | ||
|
5
|
5
2NF-83540-00-00
Tachometer Assembly (49N-83540-
49N-83540- |
2NF-83540-00-00 |
— | ||
|
6
|
6
5Y1-83520-00-00 Socket Cord Assembly (30X-83530X-835 |
5Y1-83520-00-00 |
from US $75.30 |
||
|
7
|
7
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
7
|
7
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
8
|
8
5Y1-83541-00-00 Damper |
5Y1-83541-00-00 |
from US $18.99 |
||
|
9
|
9
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
10
|
10
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
11
|
11
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
12
|
12
5Y1-83519-00-00 Bracket, Meter |
5Y1-83519-00-00 |
from US $56.65 |
||
|
13
|
13
90153-06036-00
Screw, Hexagon
|
90153-06036-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
5Y1-83550-00-00 Speedometer Cable |
5Y1-83550-00-00 |
US $41 |
||
|
15
|
15
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
15
|
15
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
16
|
16
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
17
|
17
5Y1-83560-00-00 Tachometer Cable |
5Y1-83560-00-00 |
US $45.27 |
||
|
18
|
18
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
18
|
18
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
19
|
19
5Y1-83478-00-00
New Genuine Part
IN PRICE BOOK |
5Y1-83478-00-00 |
— | ||
