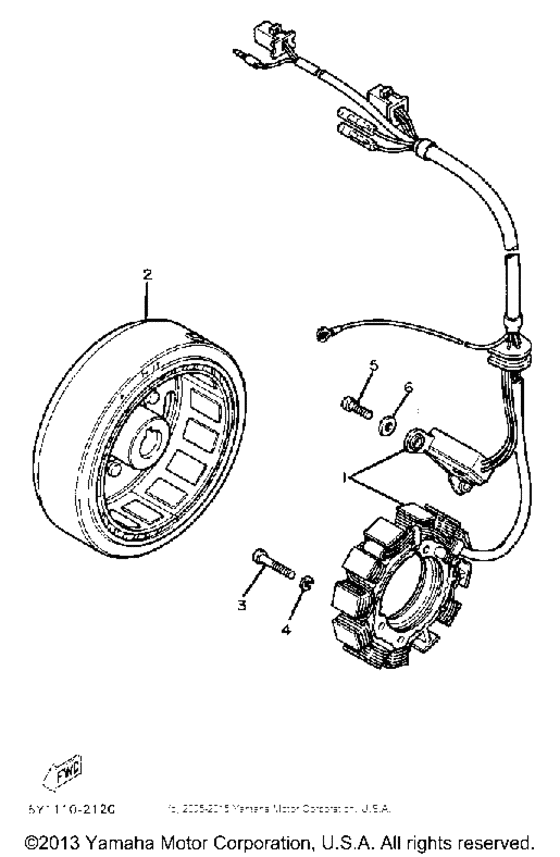

Ac generator Diagram Yamaha XT550
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-81410-52-00
Stator Assembly
|
5Y1-81410-52-00 |
— | ||
|
2
|
2
5Y1-81450-51-00
Rotor Assembly
|
5Y1-81450-51-00 |
— | ||
|
3
|
3
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
3
|
3
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
6
|
6
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
