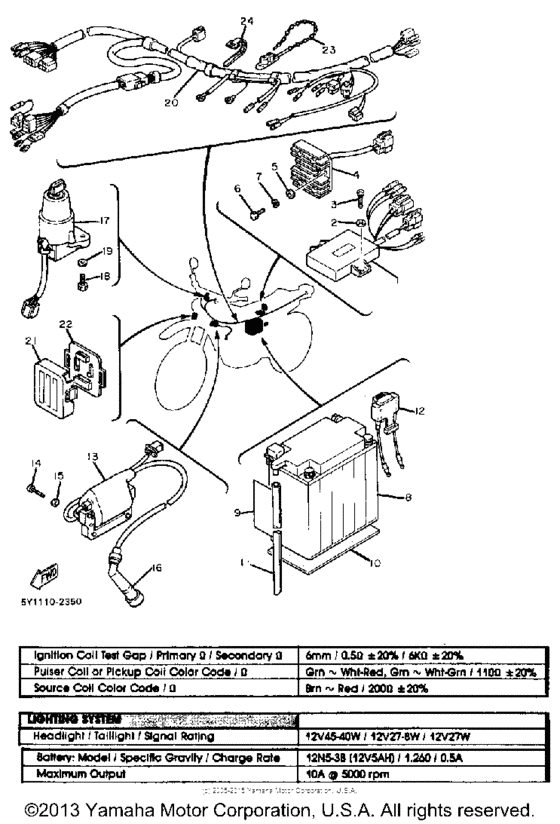

Electrical (1) Diagram Yamaha XT550
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-85540-52-00
Cdi Unit Assembly
|
5Y1-85540-52-00 |
— | ||
|
2
|
2
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
2
|
2
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
3
|
3
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
4
|
4
3Y6-81960-A0-00 Rctfr/reg |
3Y6-81960-A0-00 |
from US $145.07 |
||
| replacement | |||||
|
4
|
4
3Y6-81960-01-00 Rectifier & Regulator Assy |
3Y6-81960-01-00 |
from US $145.07 |
||
|
5
|
5
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
6
|
6
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
BTY-12N53-B0-00
12N53B Yuasa Batter
|
BTY-12N53-B0-00 |
— | ||
| replacement | |||||
|
8
|
8
12N-53BY0-00-00
CB18A GS BATTERY
|
12N-53BY0-00-00 |
— | ||
|
9
|
9
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
9
|
9
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
10
|
10
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
11
|
11
90445-08433-00 Hose |
90445-08433-00 |
US $10.91 |
||
| replacement | |||||
|
11
|
11
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
12
|
12
5Y1-82180-00-00
Circuit Breaker Assembly
|
5Y1-82180-00-00 |
— | ||
|
13
|
13
5Y1-82310-51-00
Ignition Coil Assembly
|
5Y1-82310-51-00 |
— | ||
|
14
|
14
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
16
|
16
421-82370-11-00
Plug Cap Assembly
|
421-82370-11-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
16
|
16
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
17
|
17
5Y1-82501-80-00
Main Switch Steering Lock
|
5Y1-82501-80-00 |
— | ||
|
18
|
18
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
5Y1-82590-00-00
Wire Harness Assembly
|
5Y1-82590-00-00 |
— | ||
|
21
|
21
5Y1-82599-00-00
Cover, Connecter
|
5Y1-82599-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
5Y1-82588-00-00
Plate
|
5Y1-82588-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
